Countertop | Floor | Wall

Smoke

Platinum

Introducing Core Fundamentals, our selection of the most popular red body ceramic floor, wall, and mosaic tile. These selections mainly focus on the three most beloved colors: white, gray, and beige to make designing any room easy.

Go To Application Info>

Go To Technical Specifications>

Go To Durability Chart>

Want to see this product in person? Where to buy

Roll over image to zoom

Additional Colors

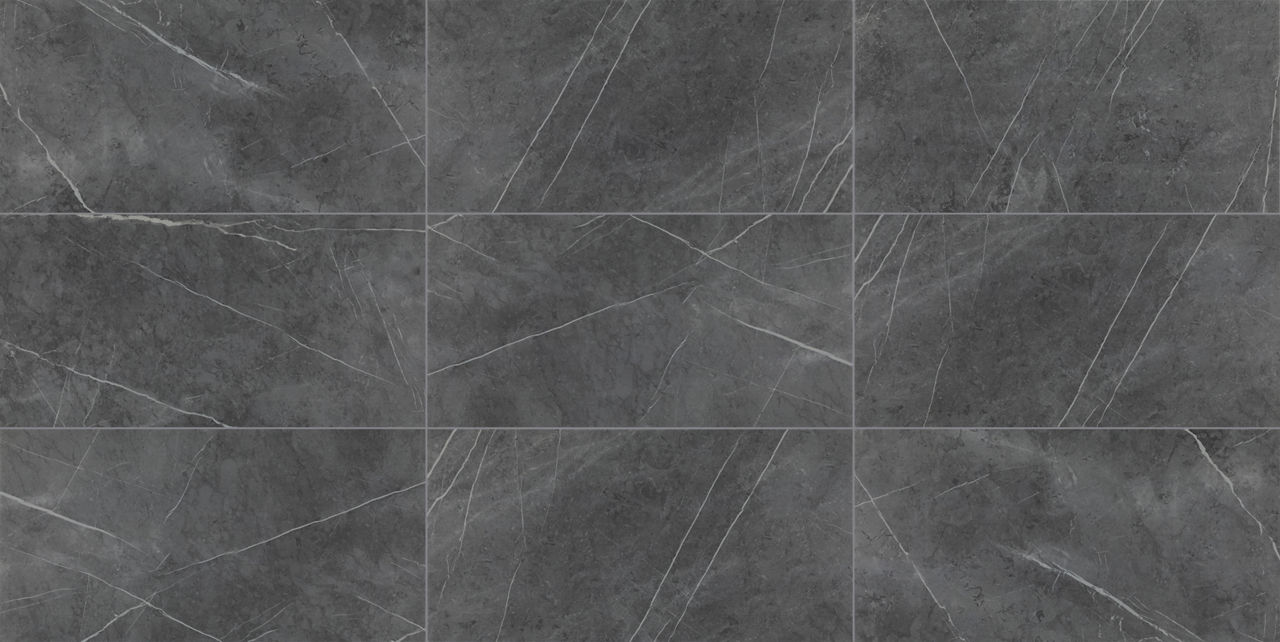

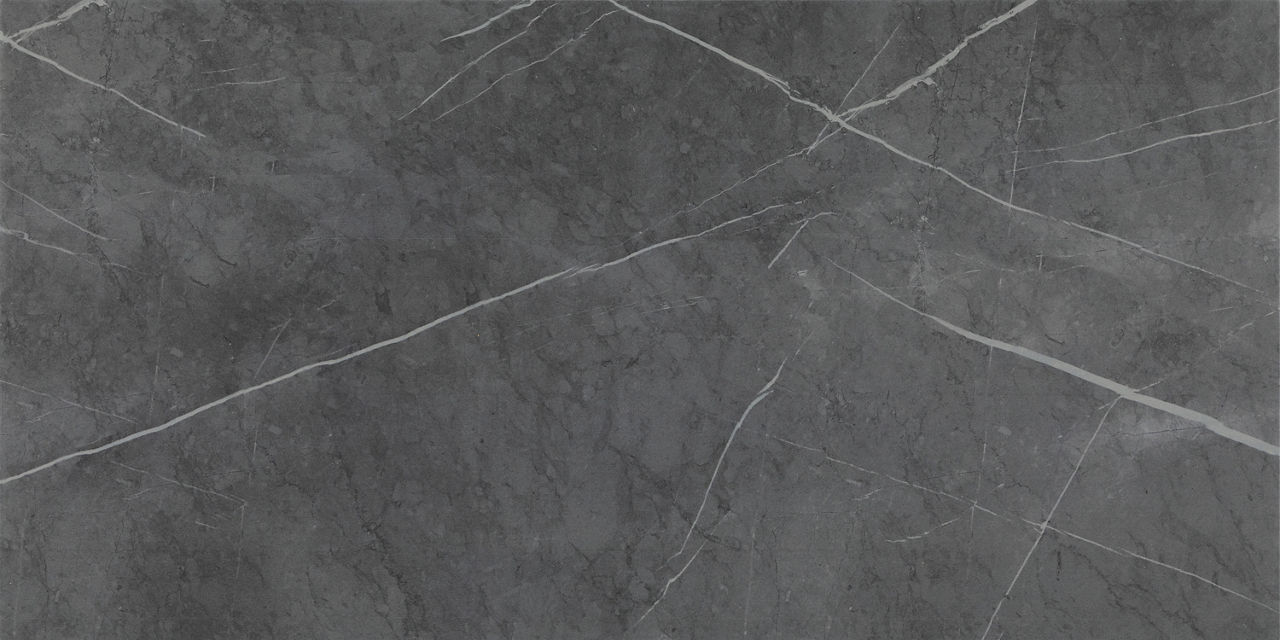

Smoke Rectangle

Color Code: PH63

Thickness: 5/16

Size: 15X30

Finish: Matte

Shade Variation: V2: Medium

Country of Origin: United States

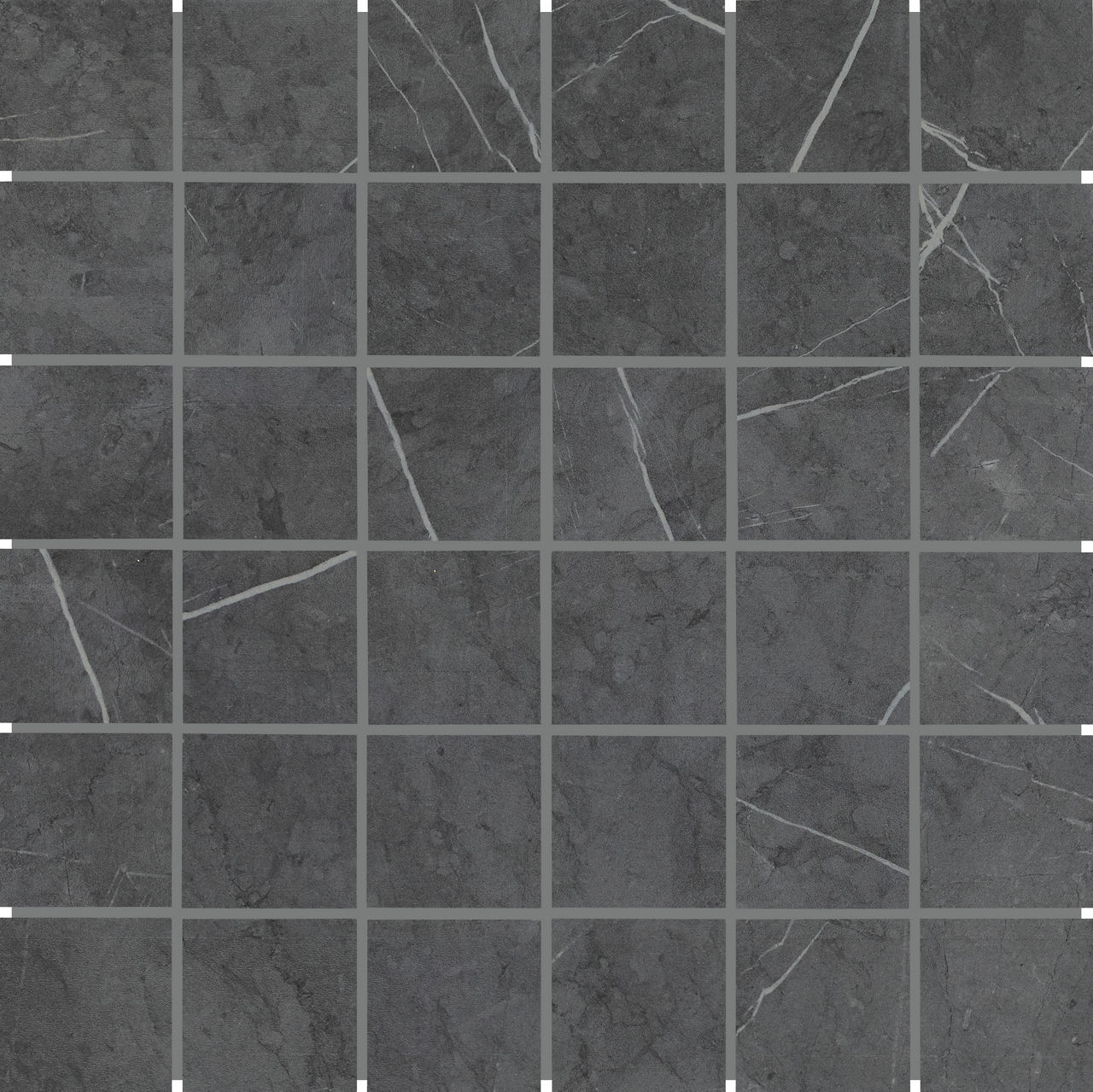

Smoke Straight Joint

Color Code: PH63

Thickness: 1/4

Size: 2X2

Finish: Matte

Shade Variation: V2: Medium

Country of Origin: Mexico

Application

	Target Dcof Wet	Suitable
Dry & Level - Interior Floor	N/A	✔
Wet & Level - Interior Floor	≥0.42	✔
Shower Floors (Residential or Light Commercial)	≥0.42	✔
Exterior Floor Applications (including pool decking & other wet areas with minimal footwear)	≥0.60
Ramps & Inclines	≥0.65
Walls/Backsplashes	N/A	✔
Countertops	N/A	✔
Pool Linings	N/A	✔
Grout Joint Recommendation: 1/8"
● A DCOF value of greater than or equal to 0.42 is the standard for tiles specified for level interior spaces expected to be walked upon when wet, as stated in ANSI A137.1-A326.3. For more information about DCOF and the DCOF AcuTest™, visit daltile.com/DCOF.
Application Notes: No additional notes

Technical Specifications

	Test Method	Mosaic Tile	Floor Tile
Water Absorption	ASTM C373	< 3.0	< 0.5
Breaking Strength	ASTM C648	> 250 lbs	> 275 lbs
Scratch Hardness	ASTM MOHS	4.0-8.0	8
Chemical Resistance	ASTM C650	Resistant	Resistant
