Countertop | Floor | Wall

Dawn

Haddonstone

Haddonstone, a ColorBody porcelain series, captures the essence of limestone tile with refined vein-cut and raw crosscut designs, enhanced by RevealSync3D technology and StepWise slip resistance for versatile indoor and outdoor use.

Go To Application Info>

Go To Technical Specifications>

Go To Durability Chart>

Want to see this product in person? Where to buy

Roll over image to zoom

Additional Colors

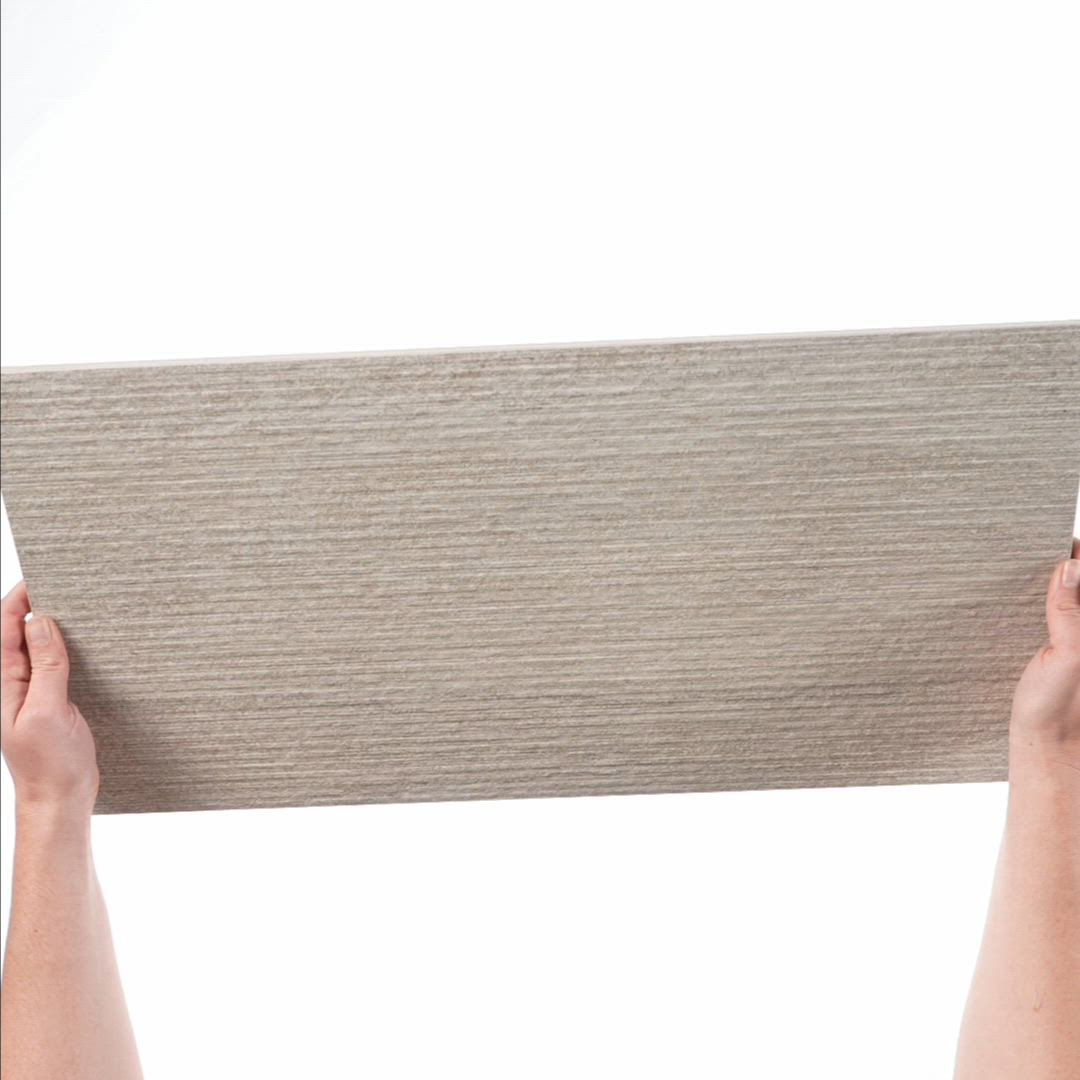

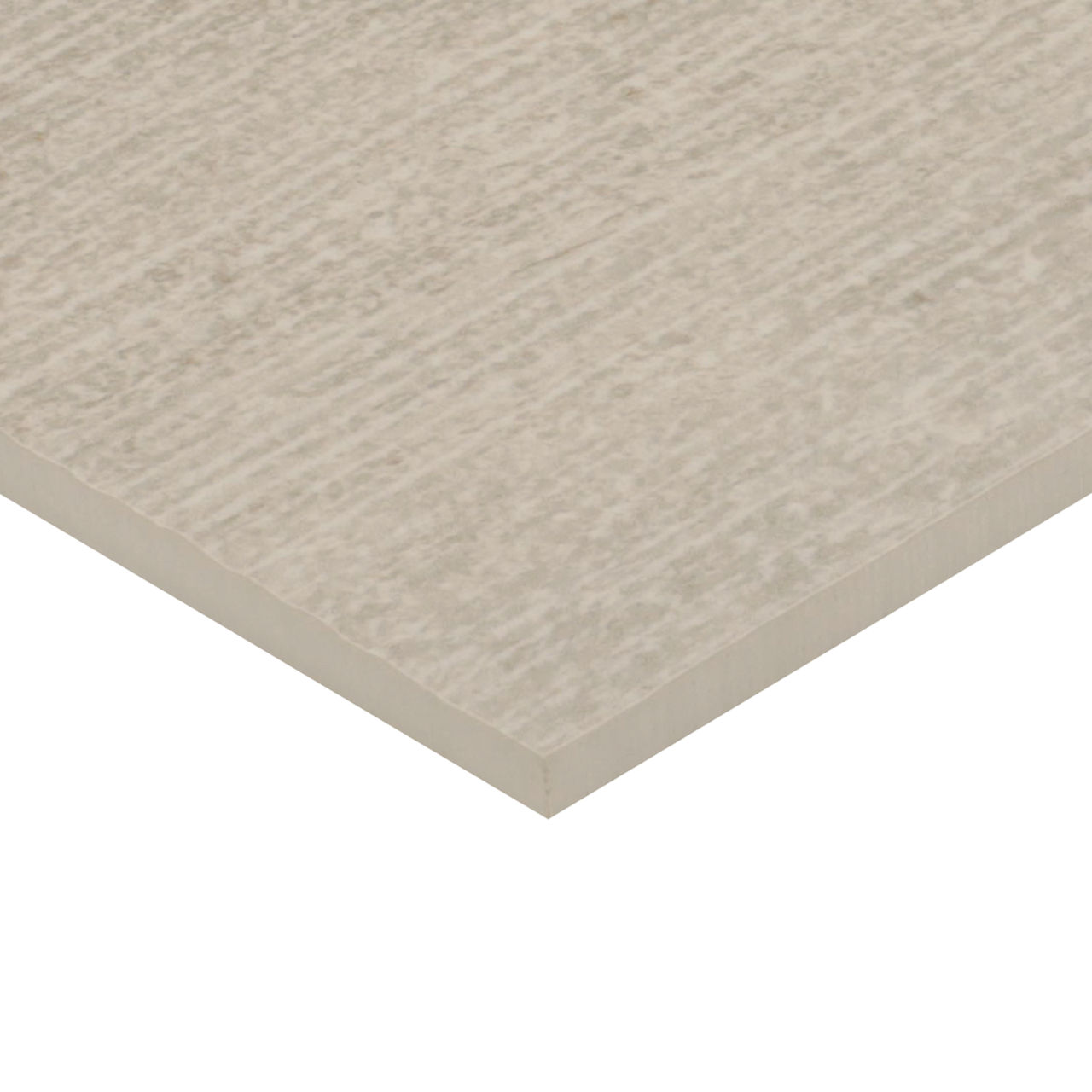

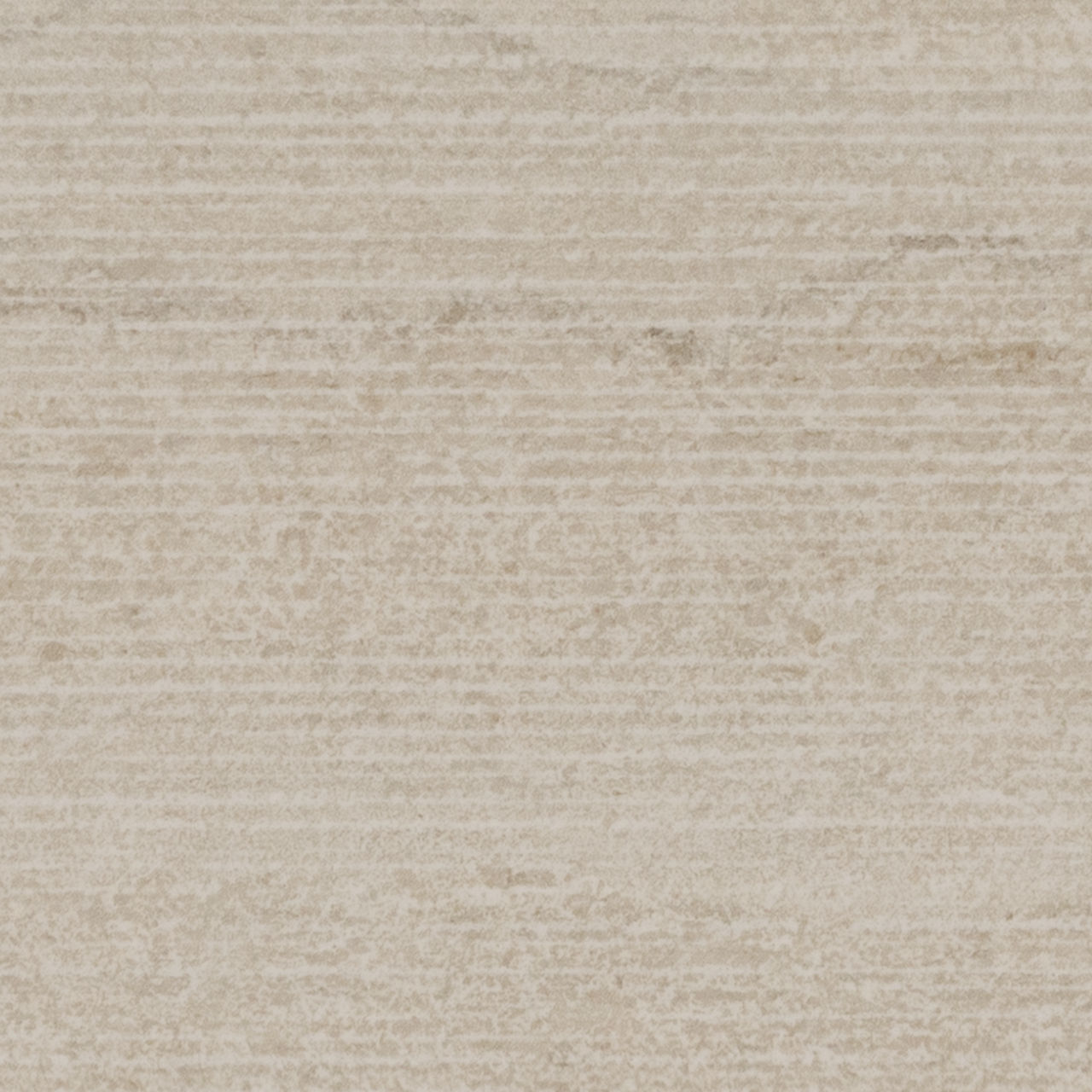

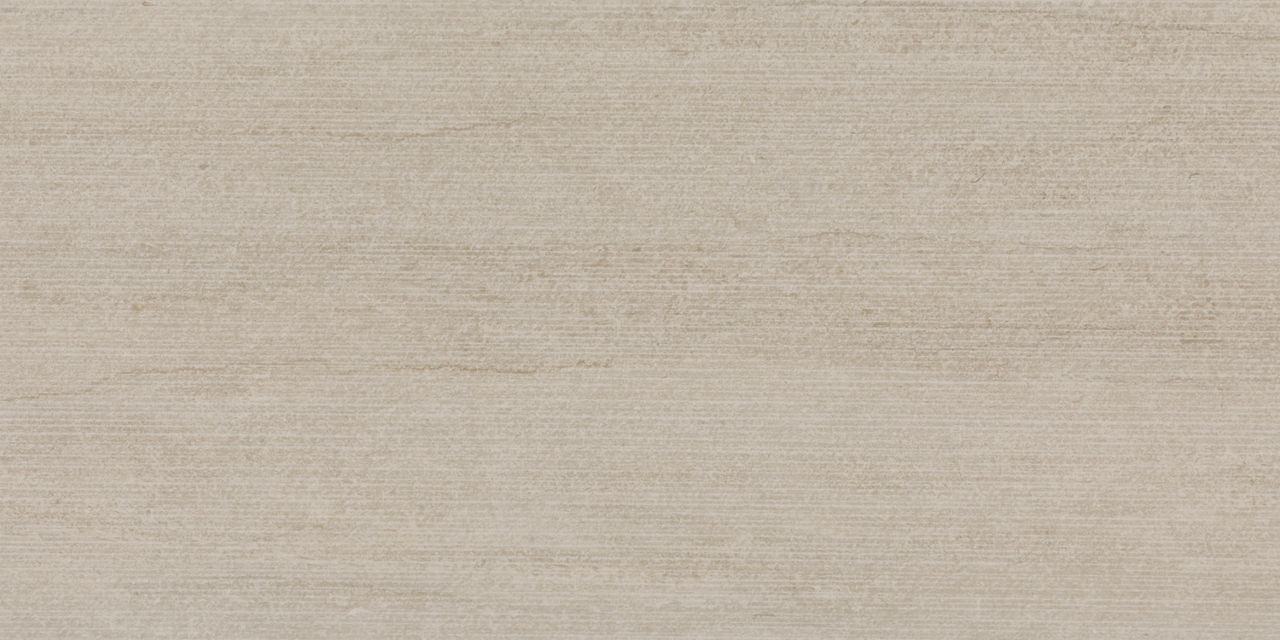

Dawn Rectangle Ridge

Color Code: HS05

Thickness: 5/16

Size: 12X24

Finish: Textured

Shade Variation: V3: High

Country of Origin: United States

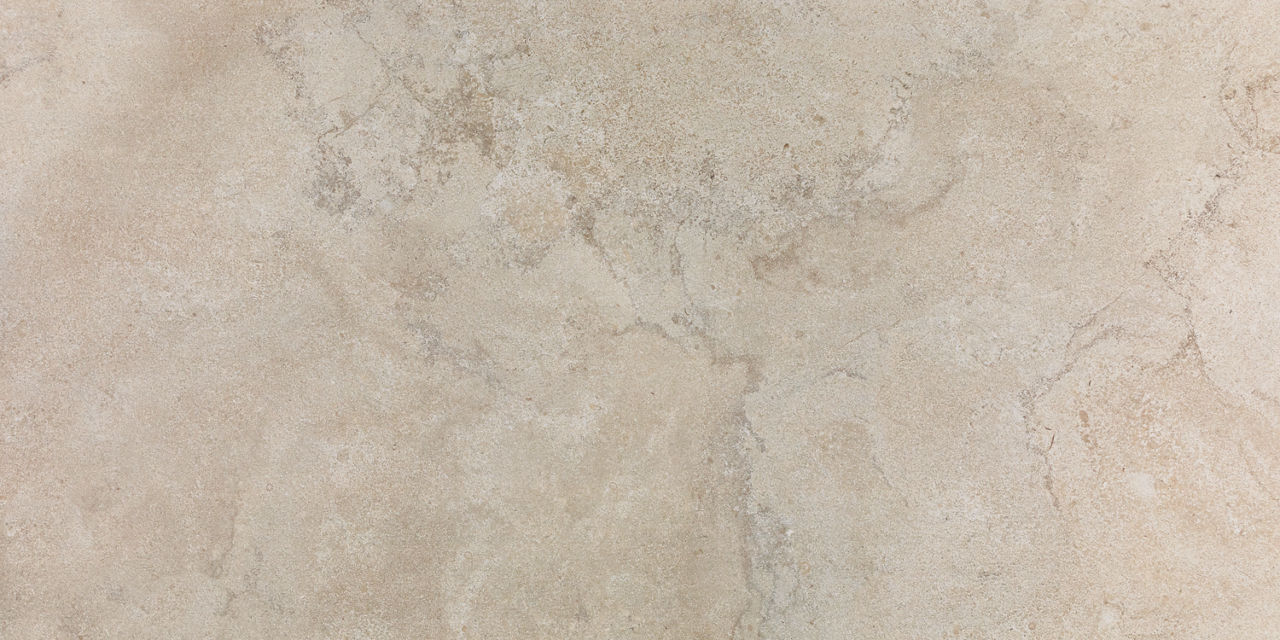

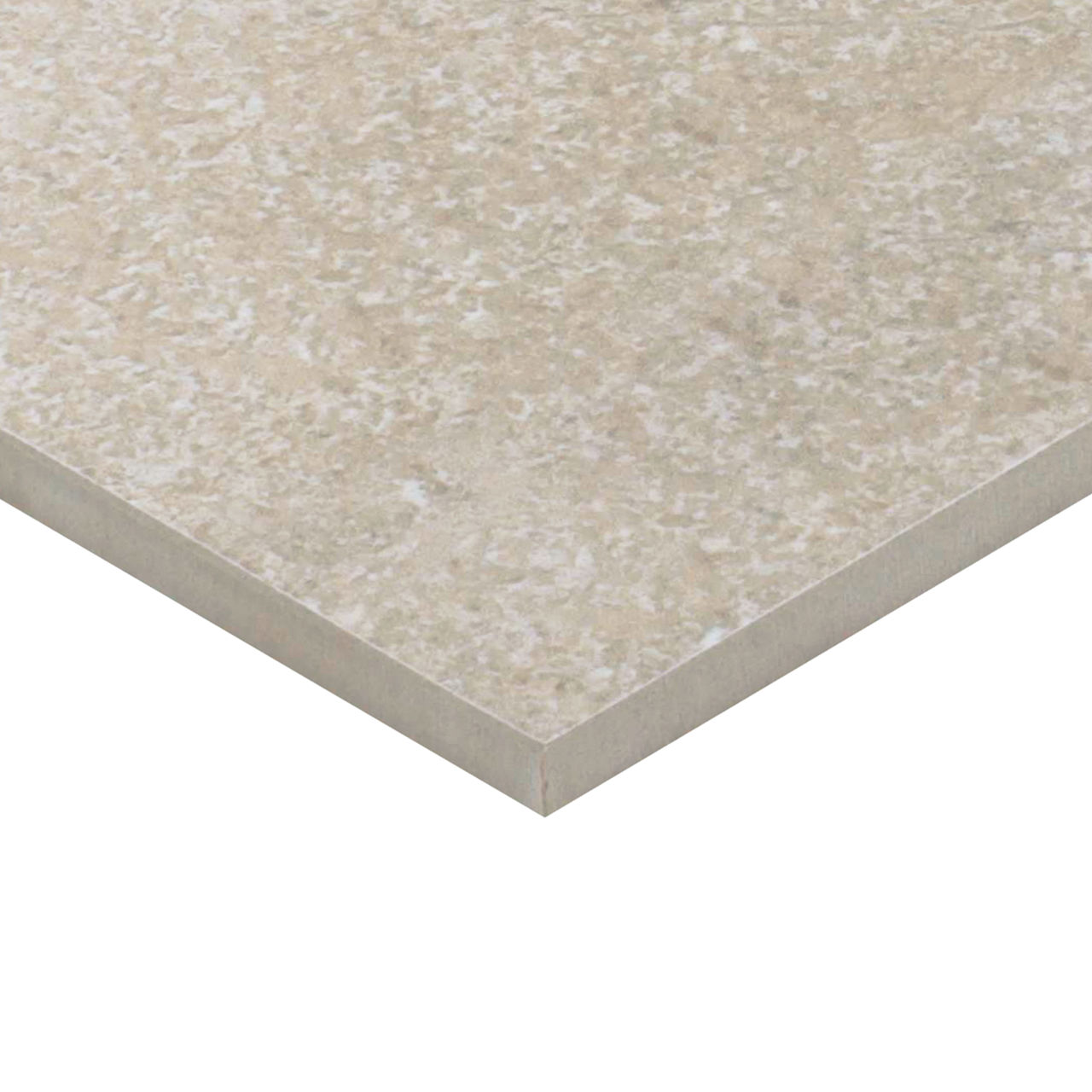

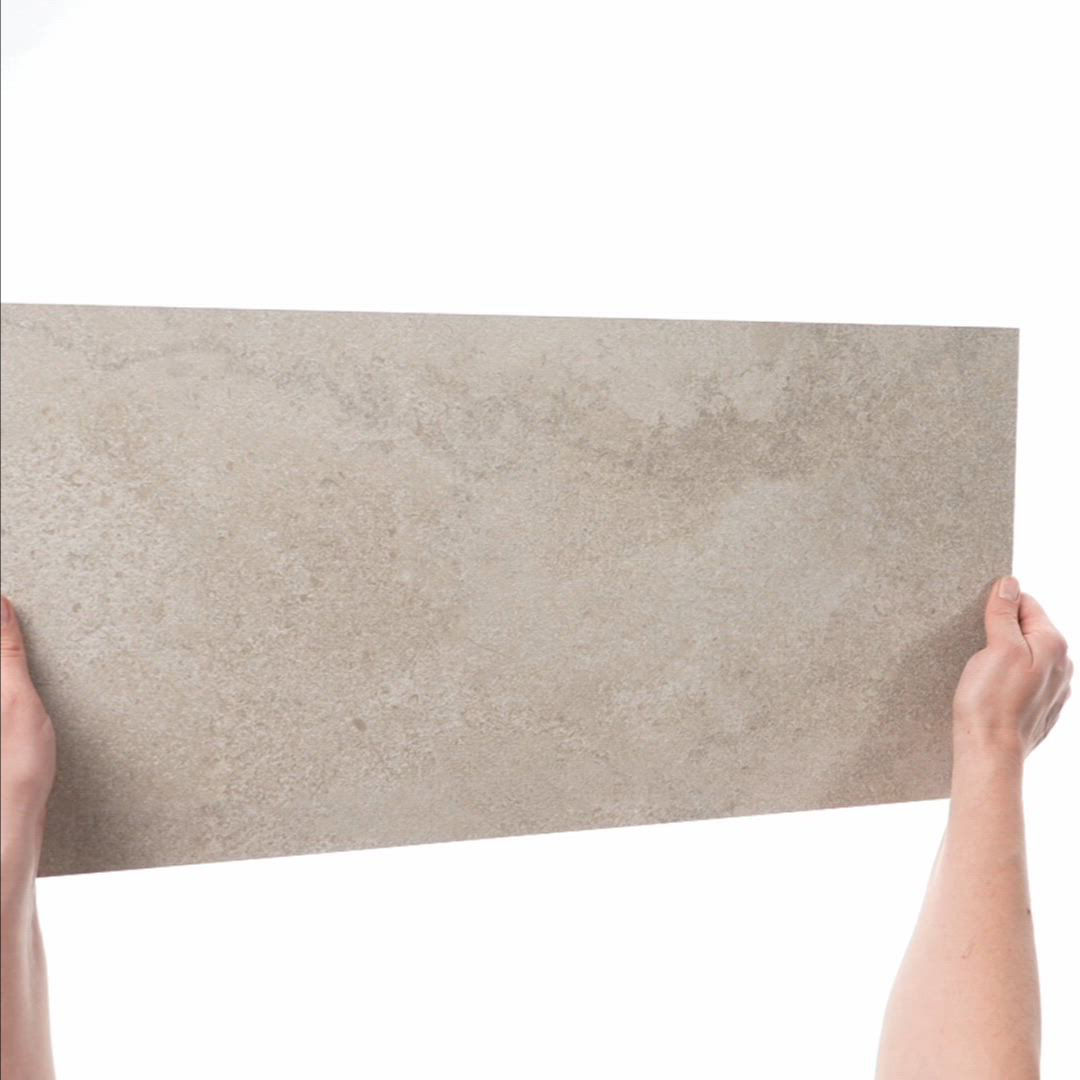

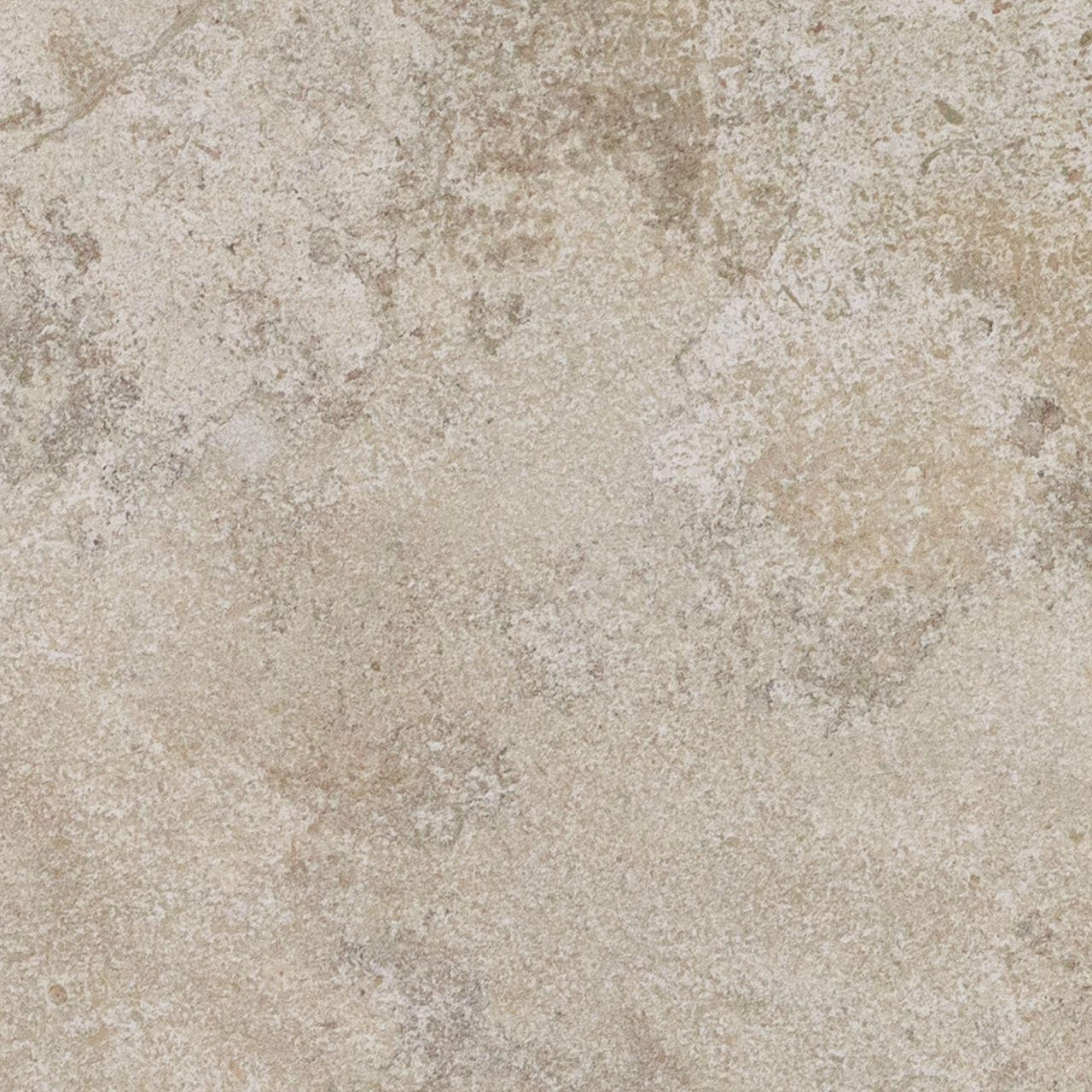

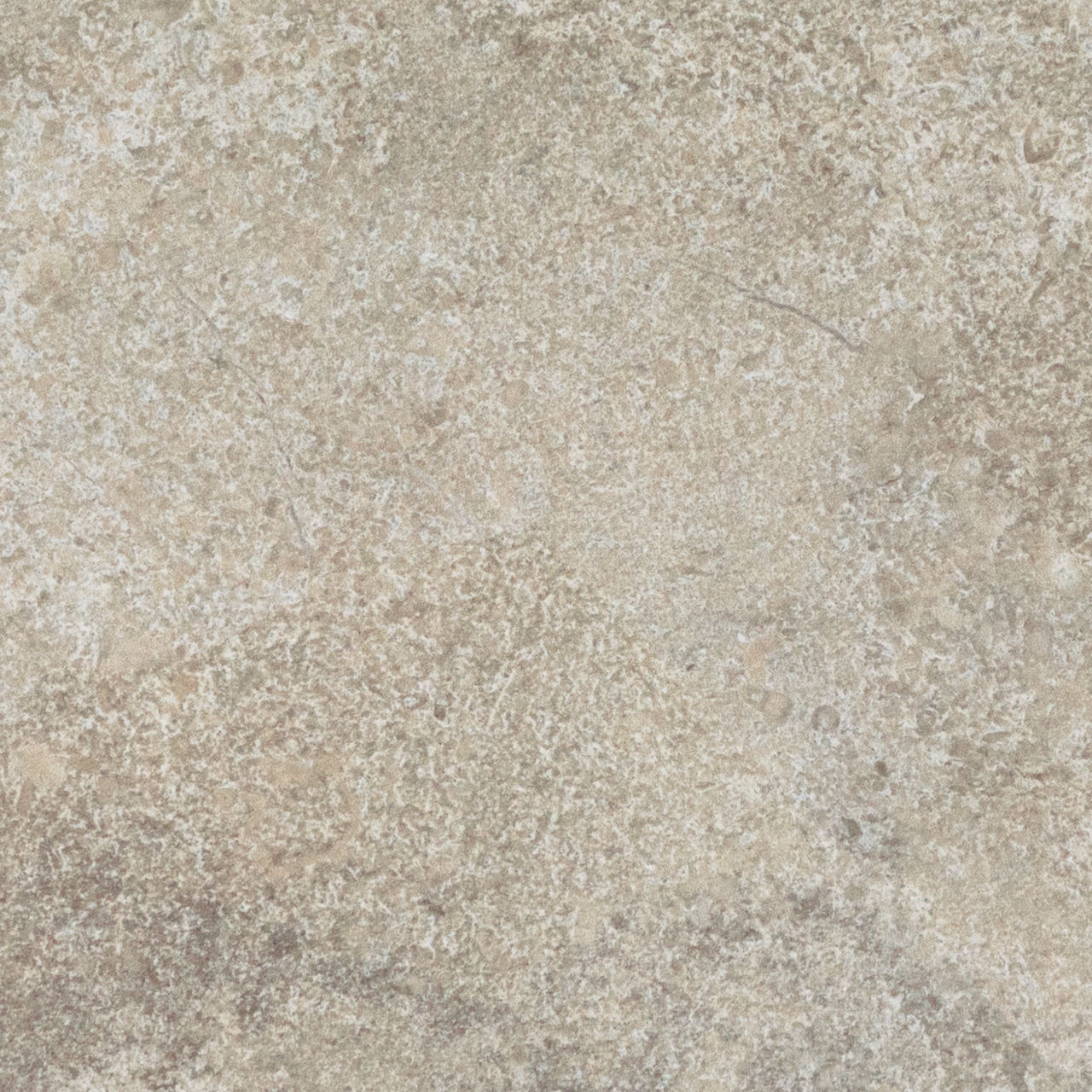

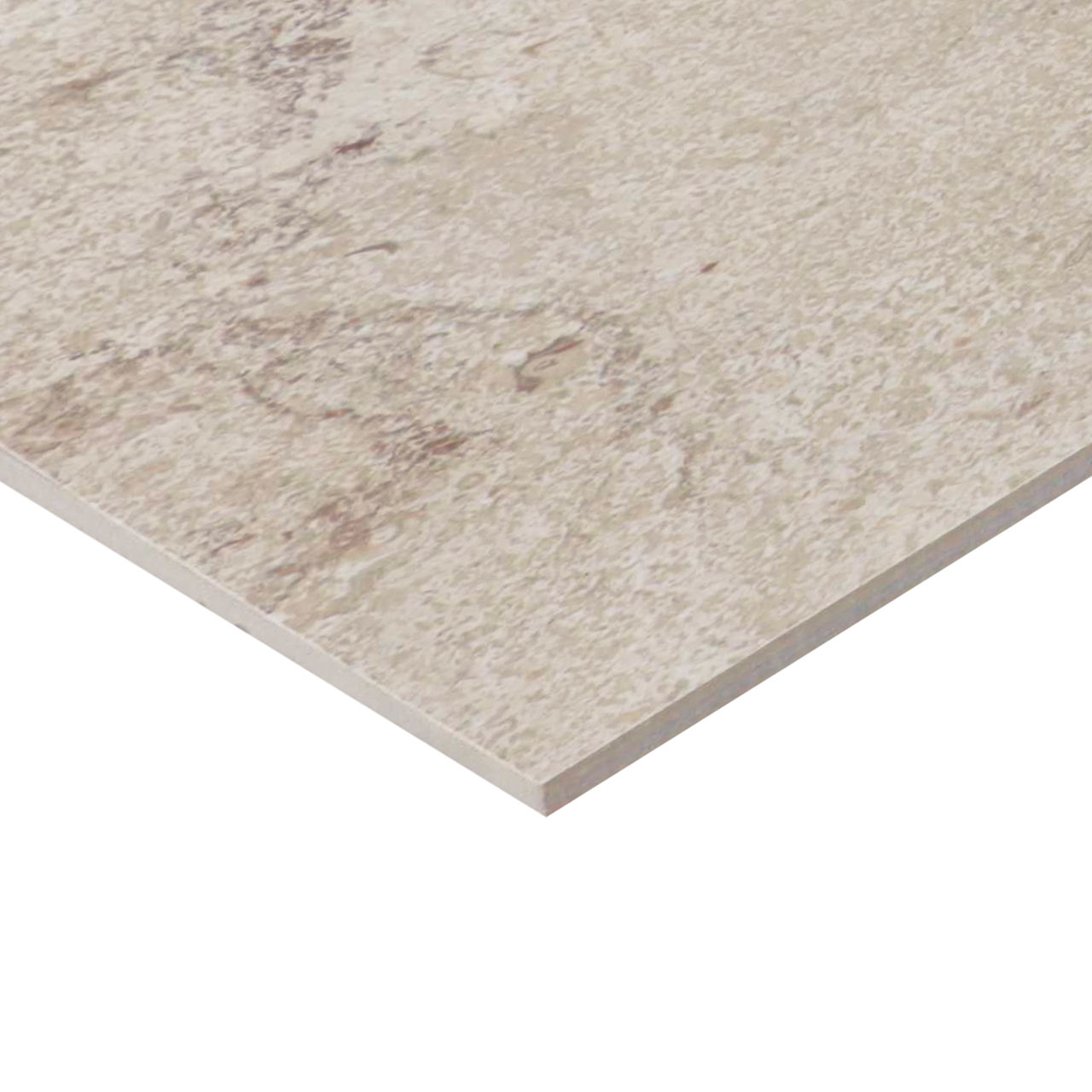

Dawn Rectangle Crosscut

Color Code: HS05

Thickness: 5/16

Size: 12X24, 24X48

Finish: Matte

Shade Variation: V3: High

Country of Origin: United States

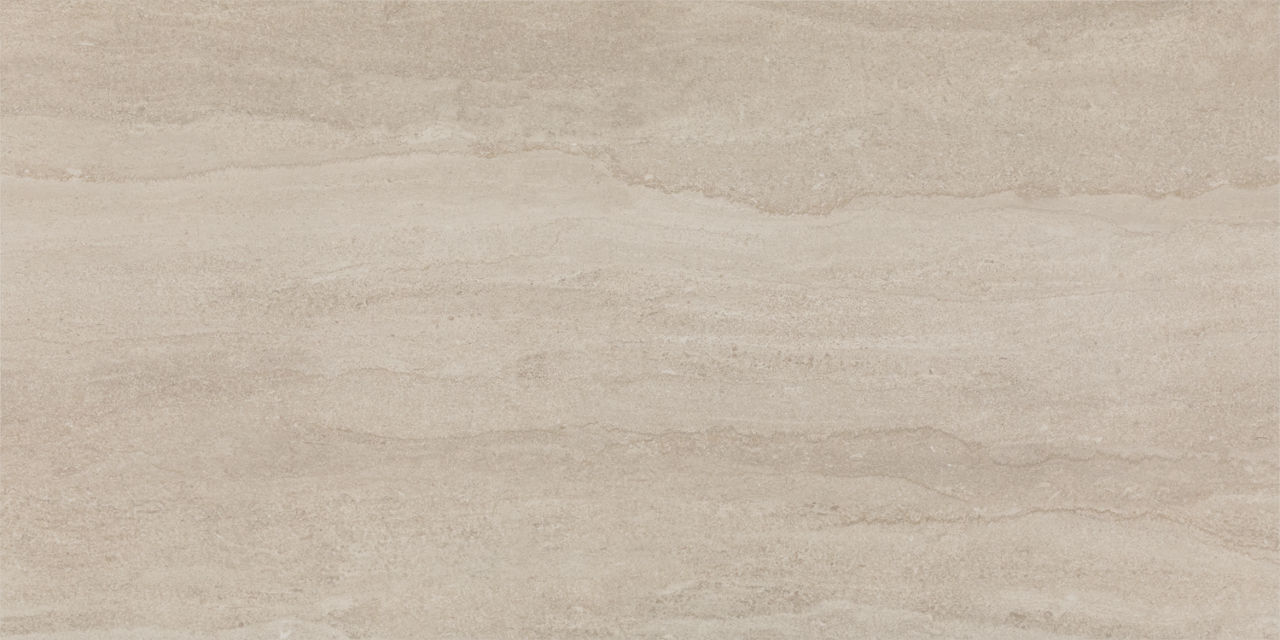

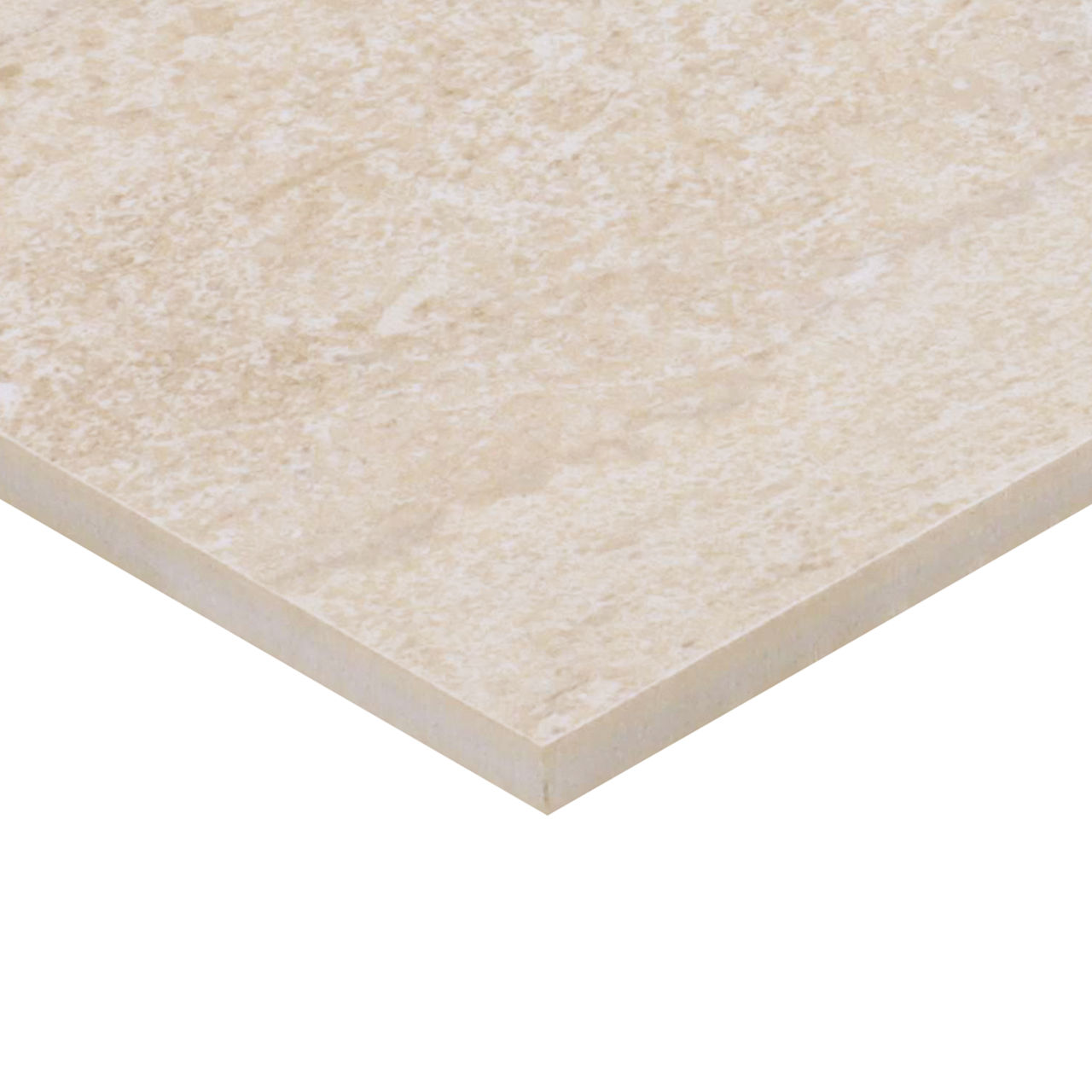

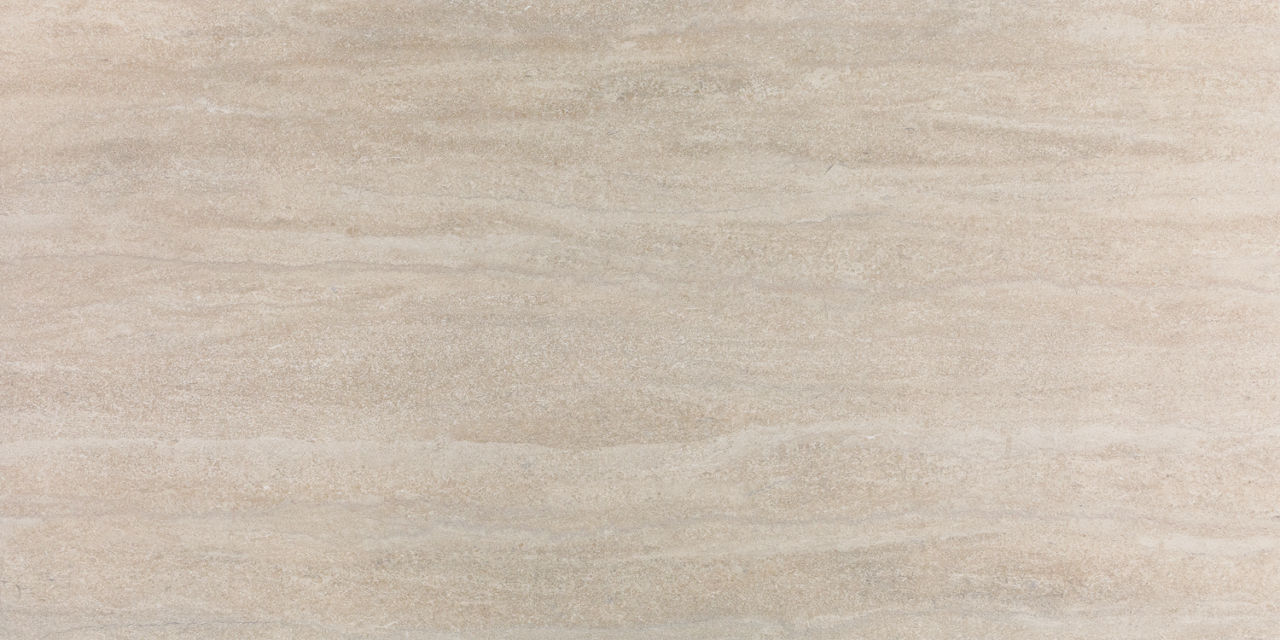

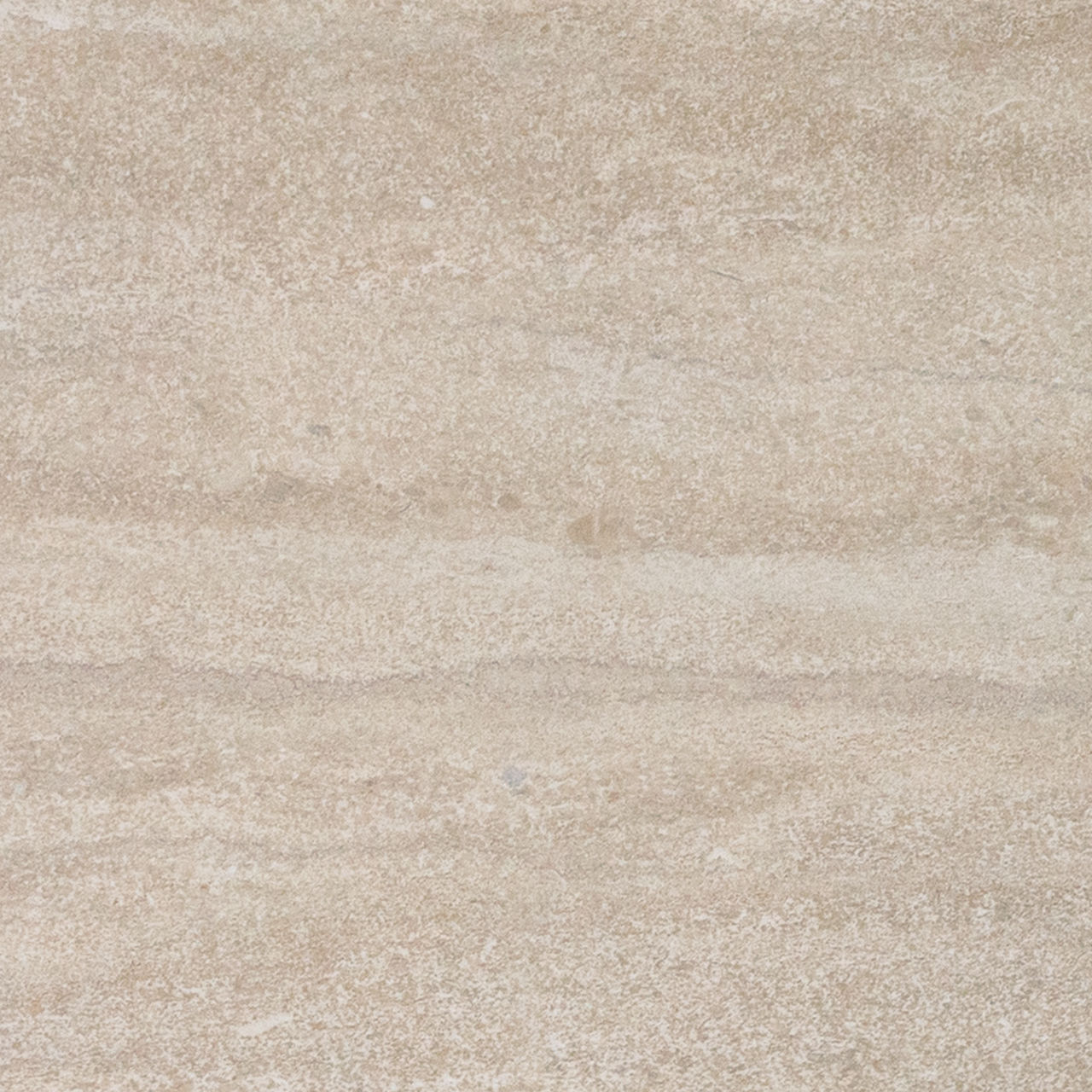

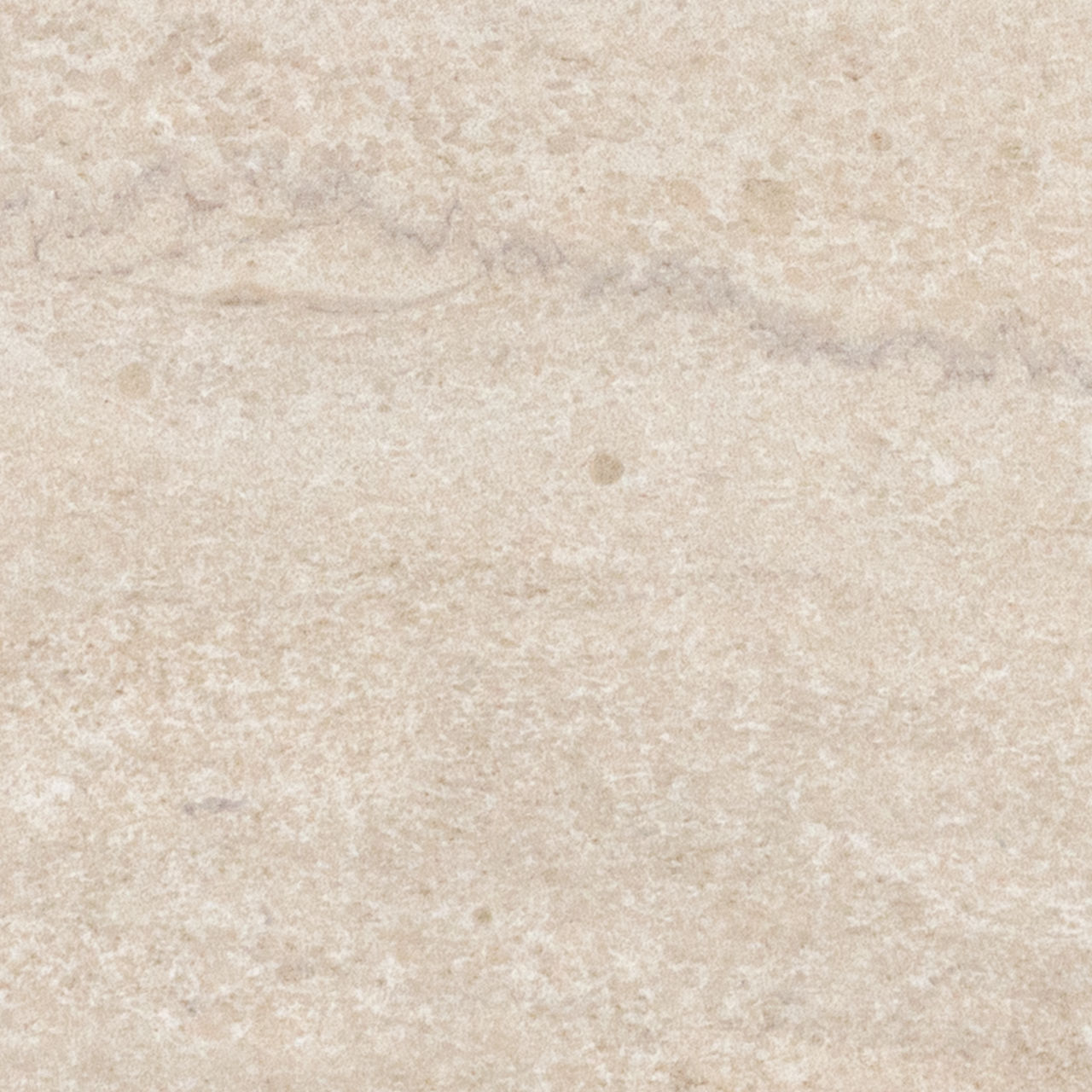

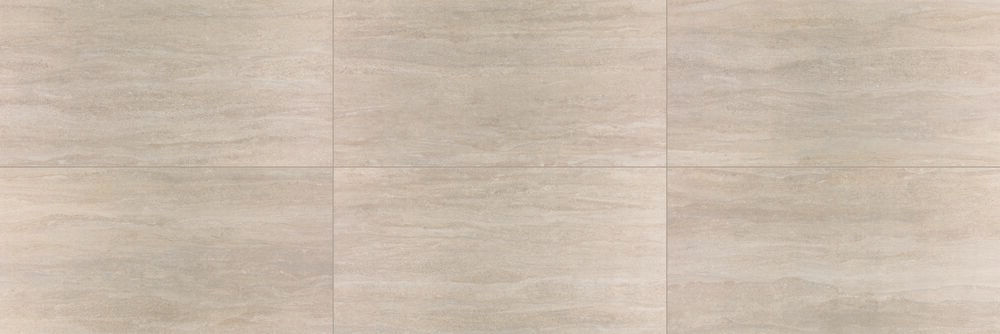

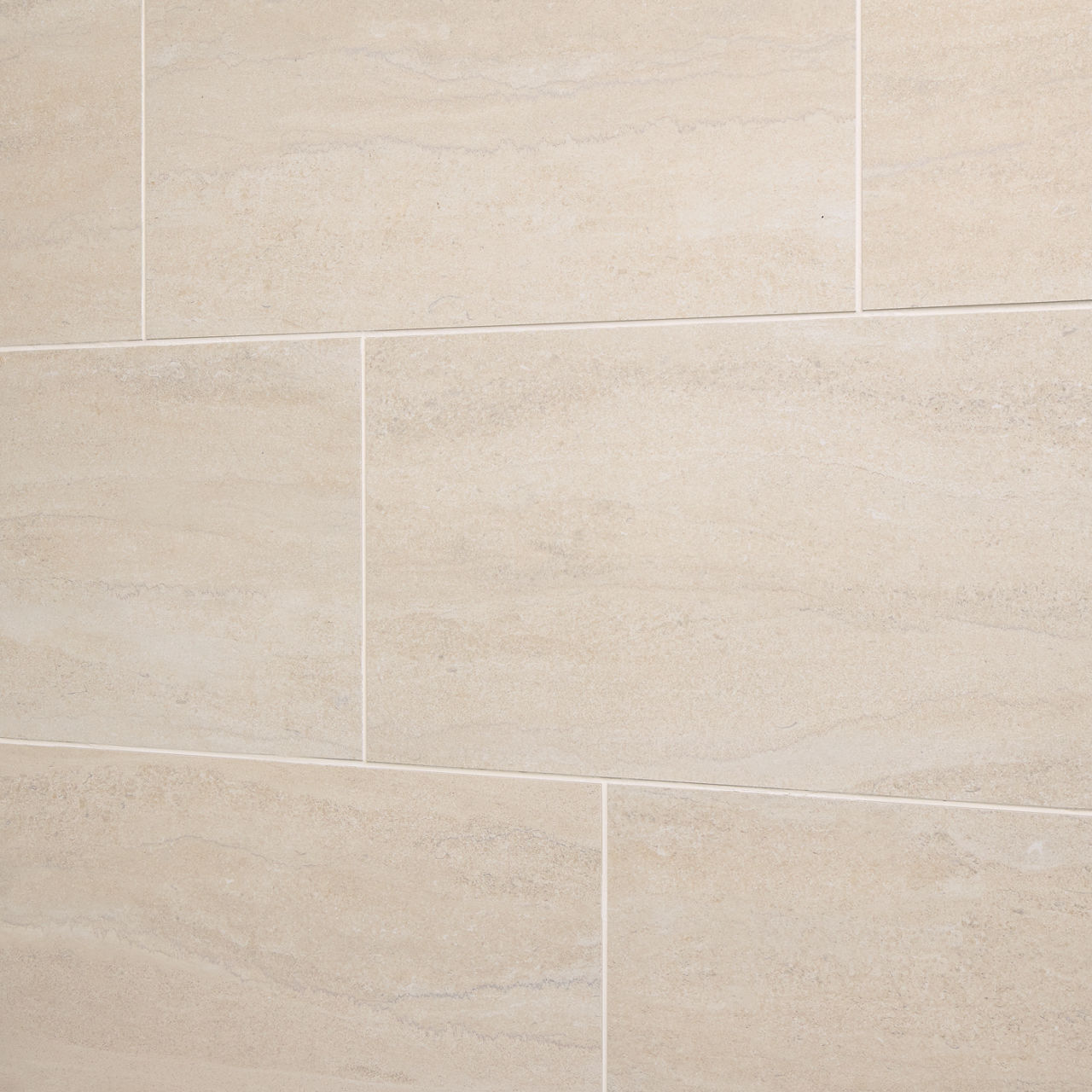

Dawn Rectangle Vein Cut

Color Code: HS05

Thickness: 5/16

Size: 12X24, 24X48

Finish: Matte

Shade Variation: V3: High

Country of Origin: United States

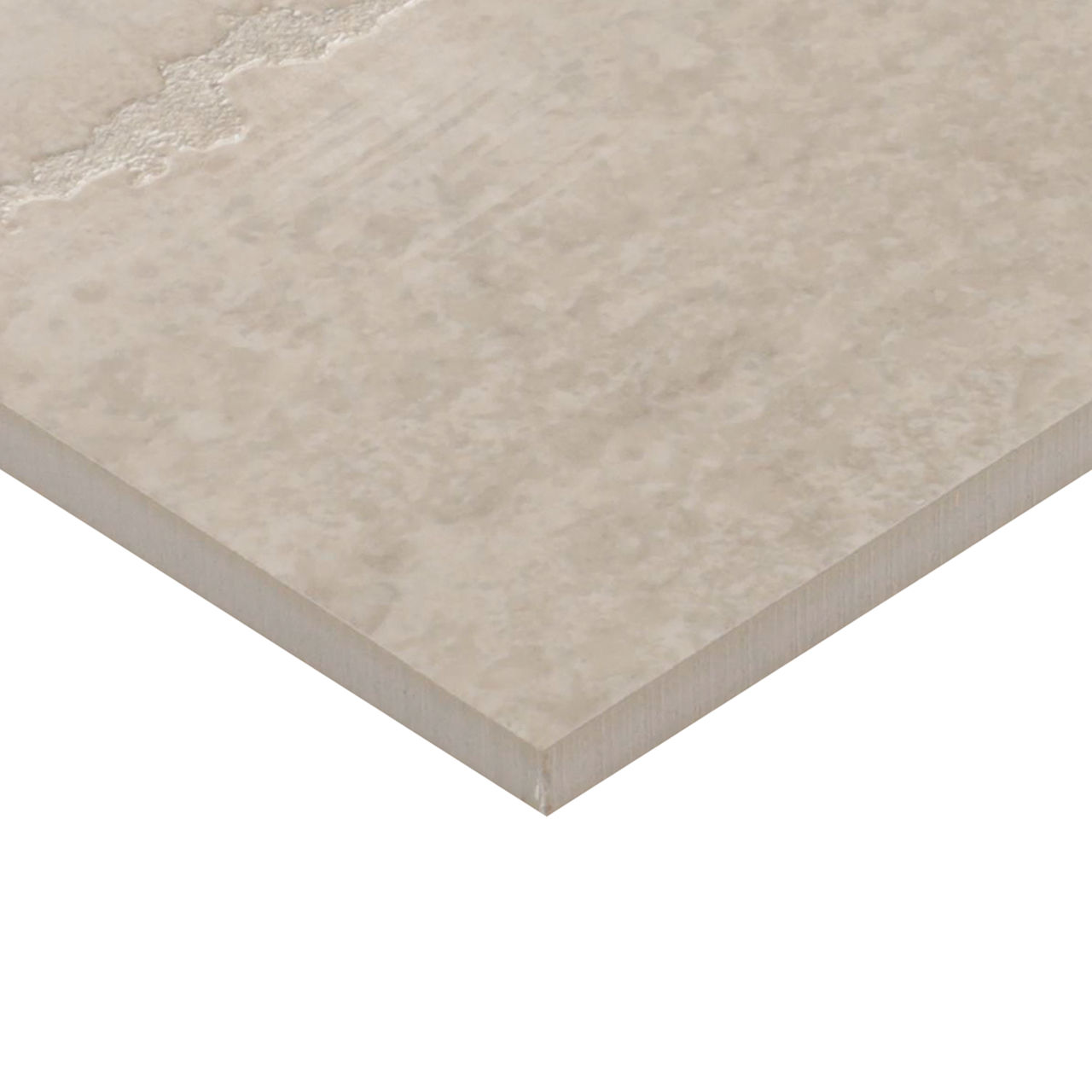

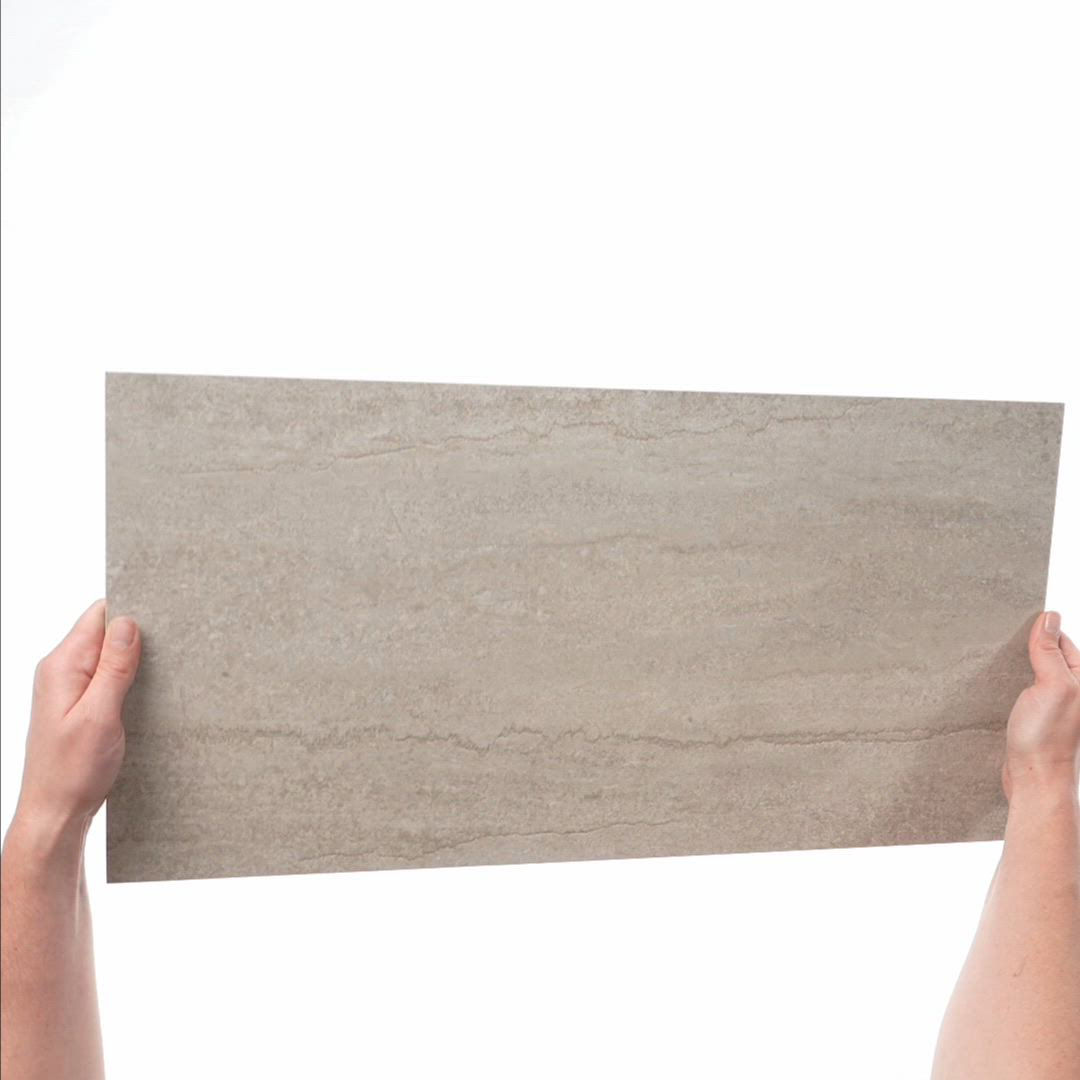

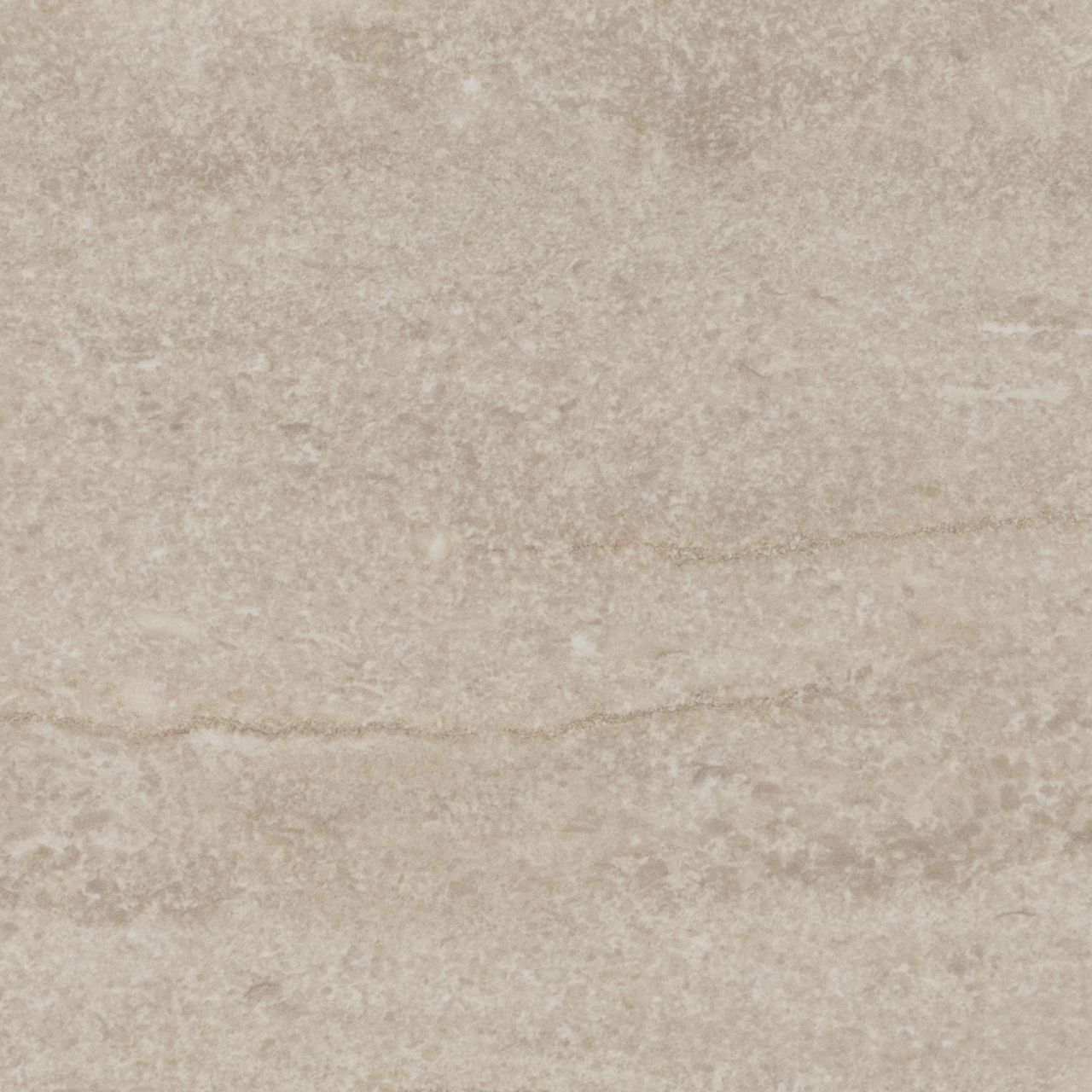

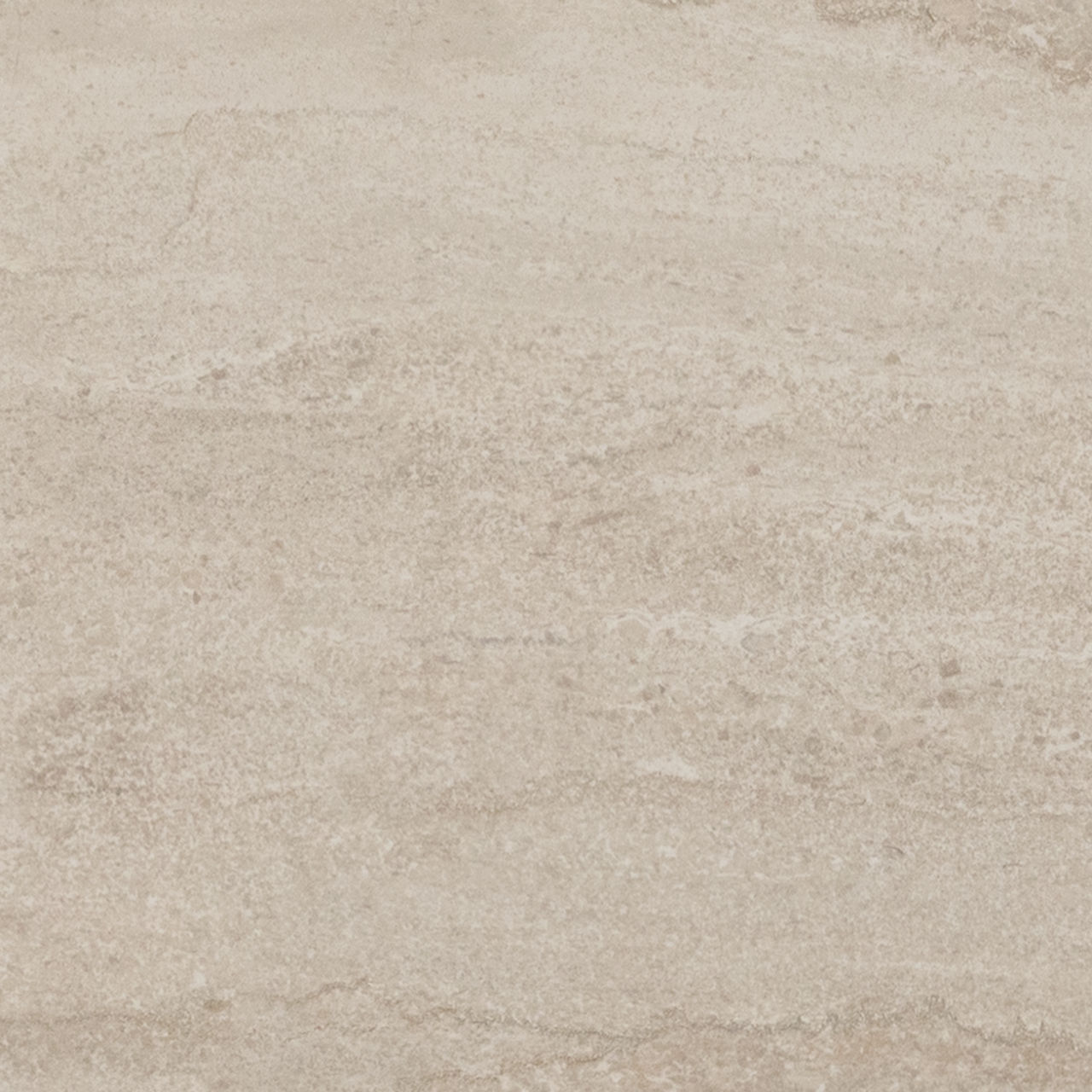

Dawn Rectangle Vein Cut

Color Code: HS05

Thickness: 5/16

Size: 12X24, 24X48

Finish: Satin Polished

Shade Variation: V3: High

Country of Origin: United States

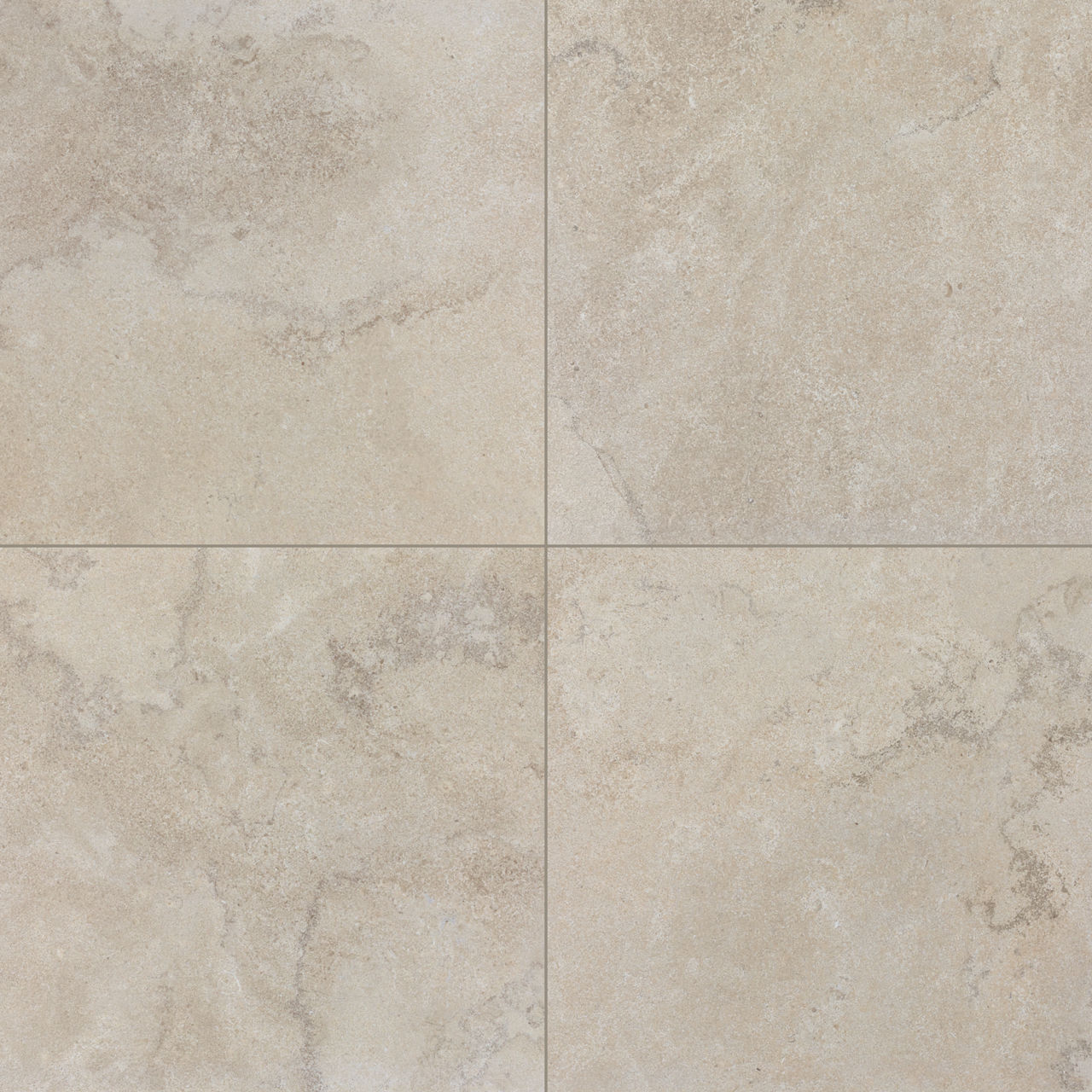

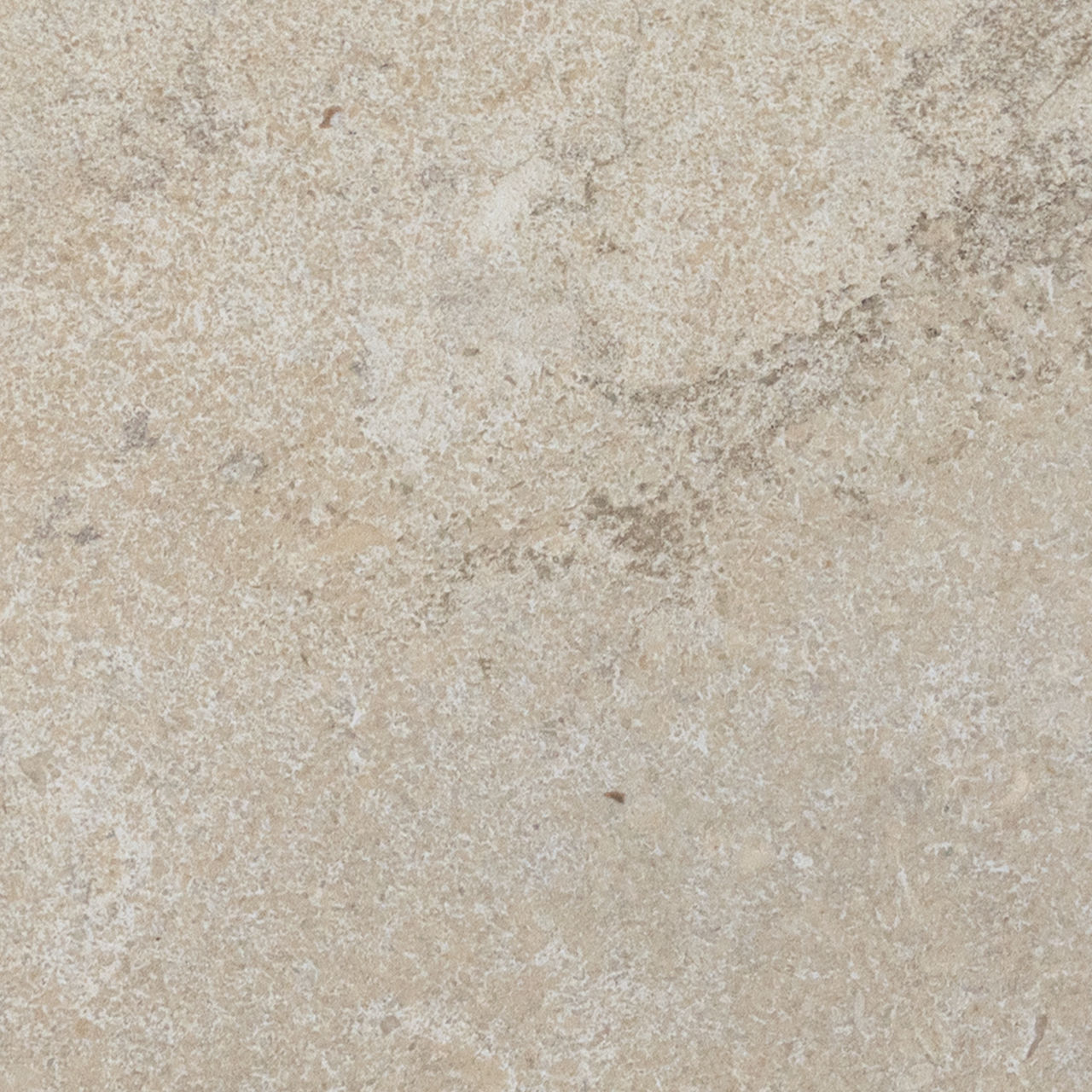

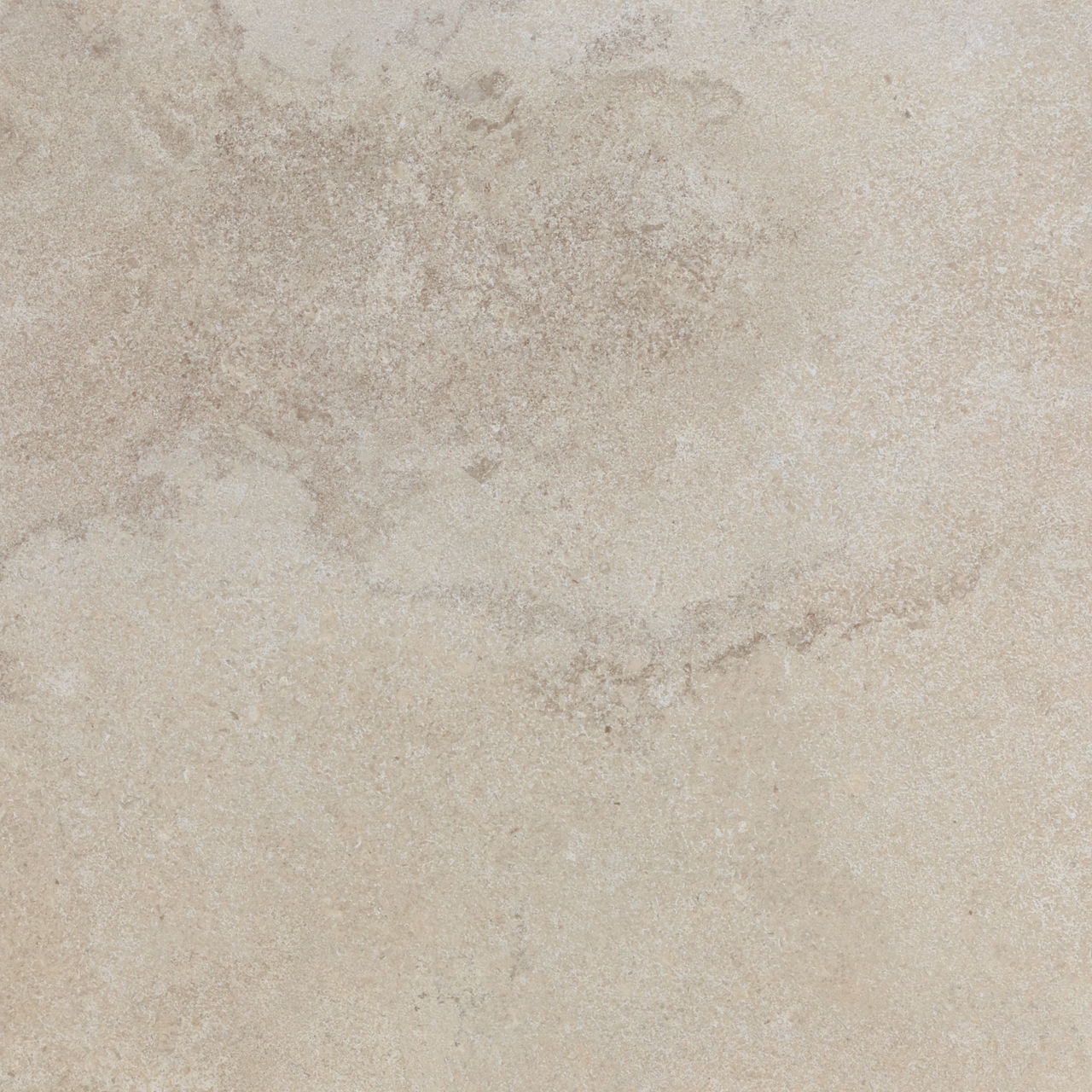

Dawn Square Crosscut

Color Code: HS05

Thickness: 5/16

Size: 24X24

Finish: Matte

Shade Variation: V3: High

Country of Origin: United States

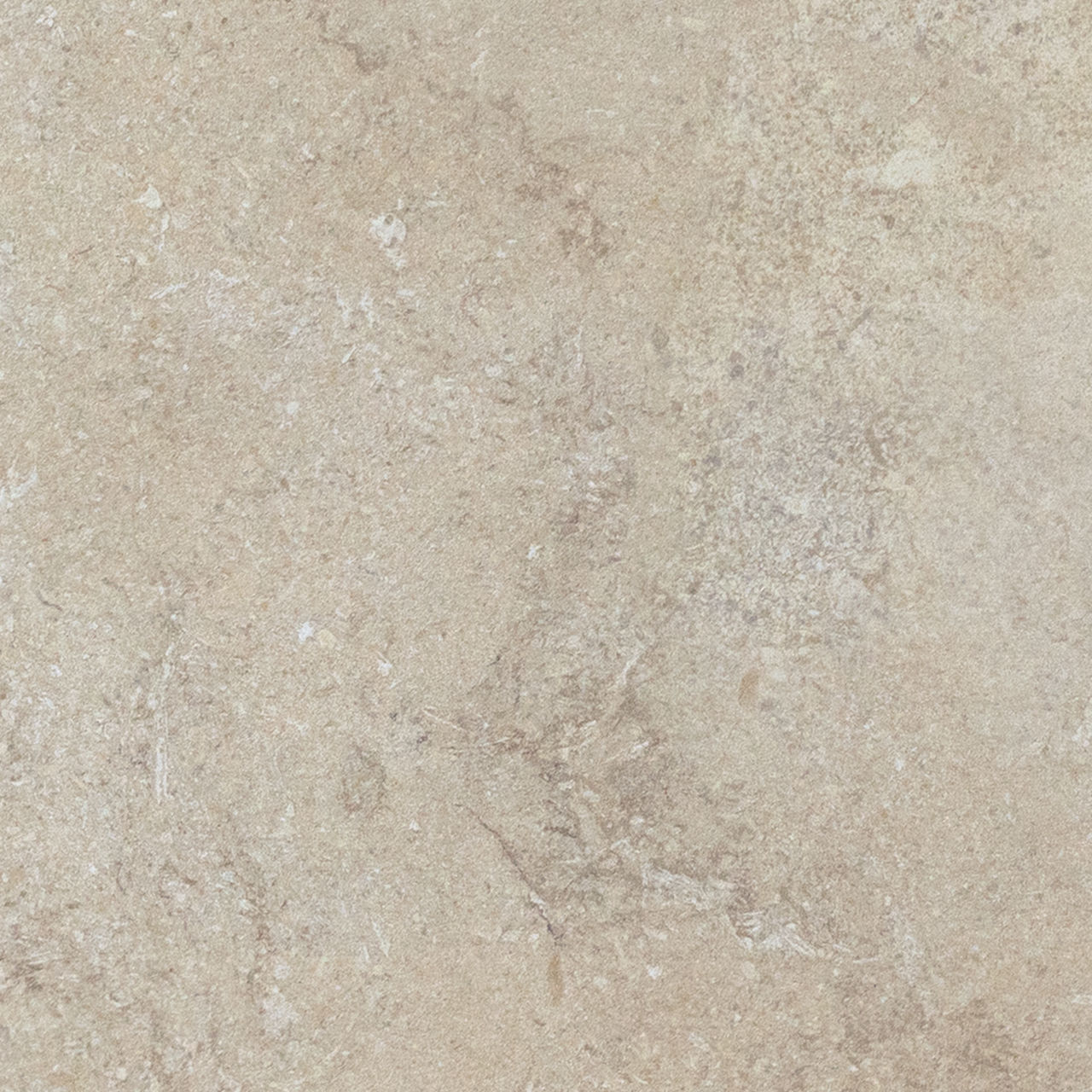

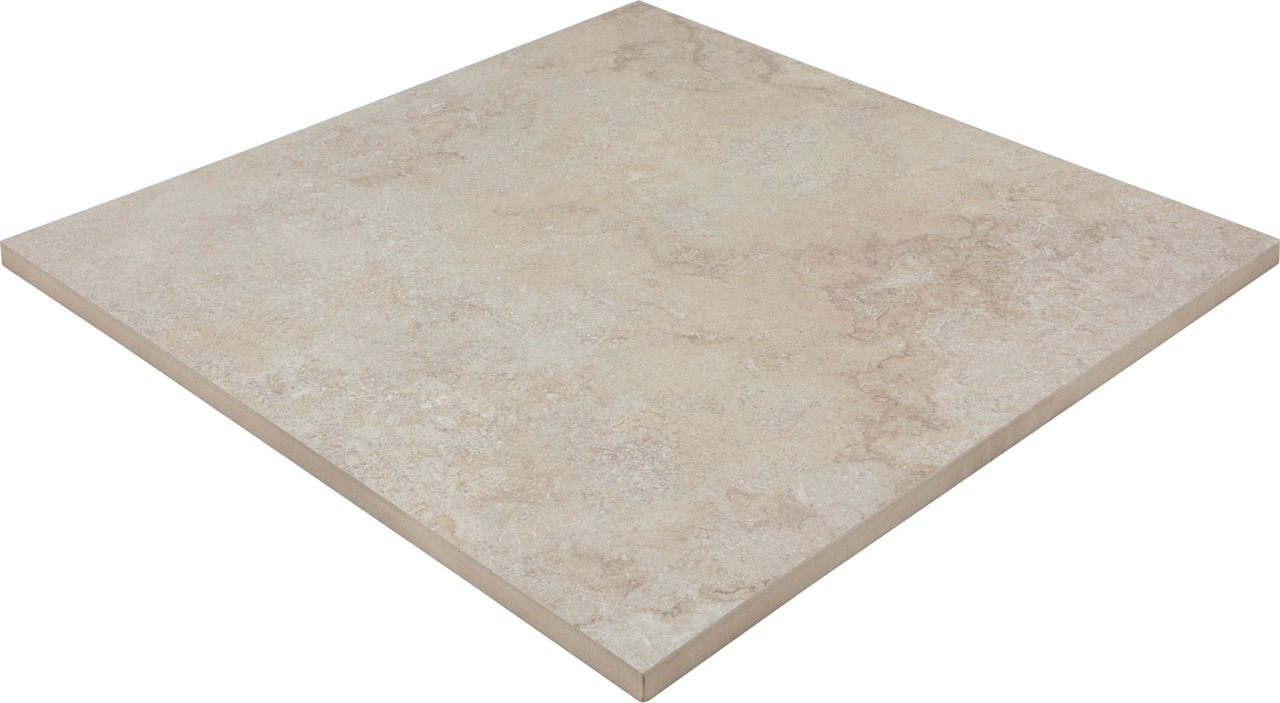

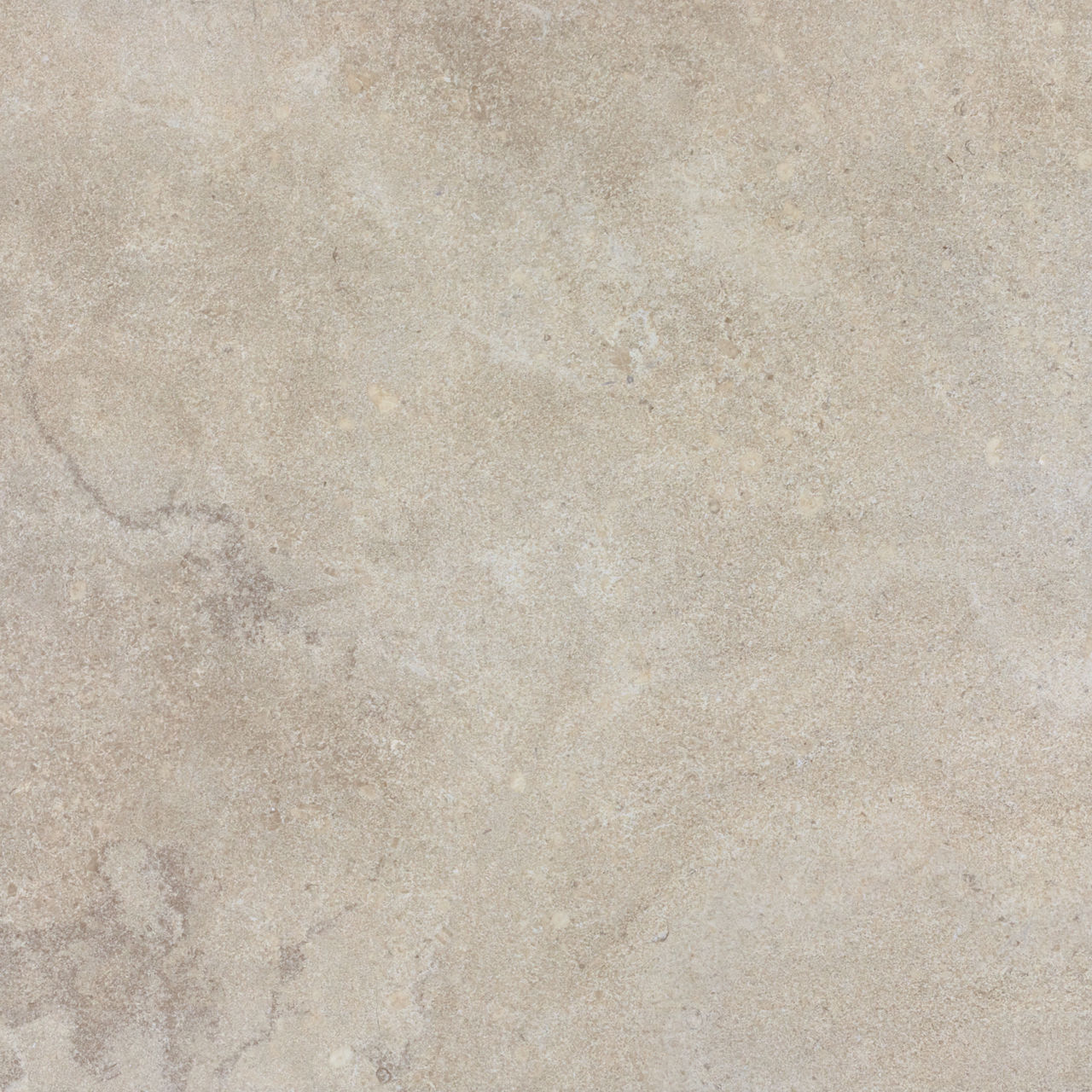

Dawn Xterior Paver

Color Code: HS05

Thickness: 13/16

Size: 24X24

Finish: Textured

Shade Variation: V3: High

Country of Origin: United States

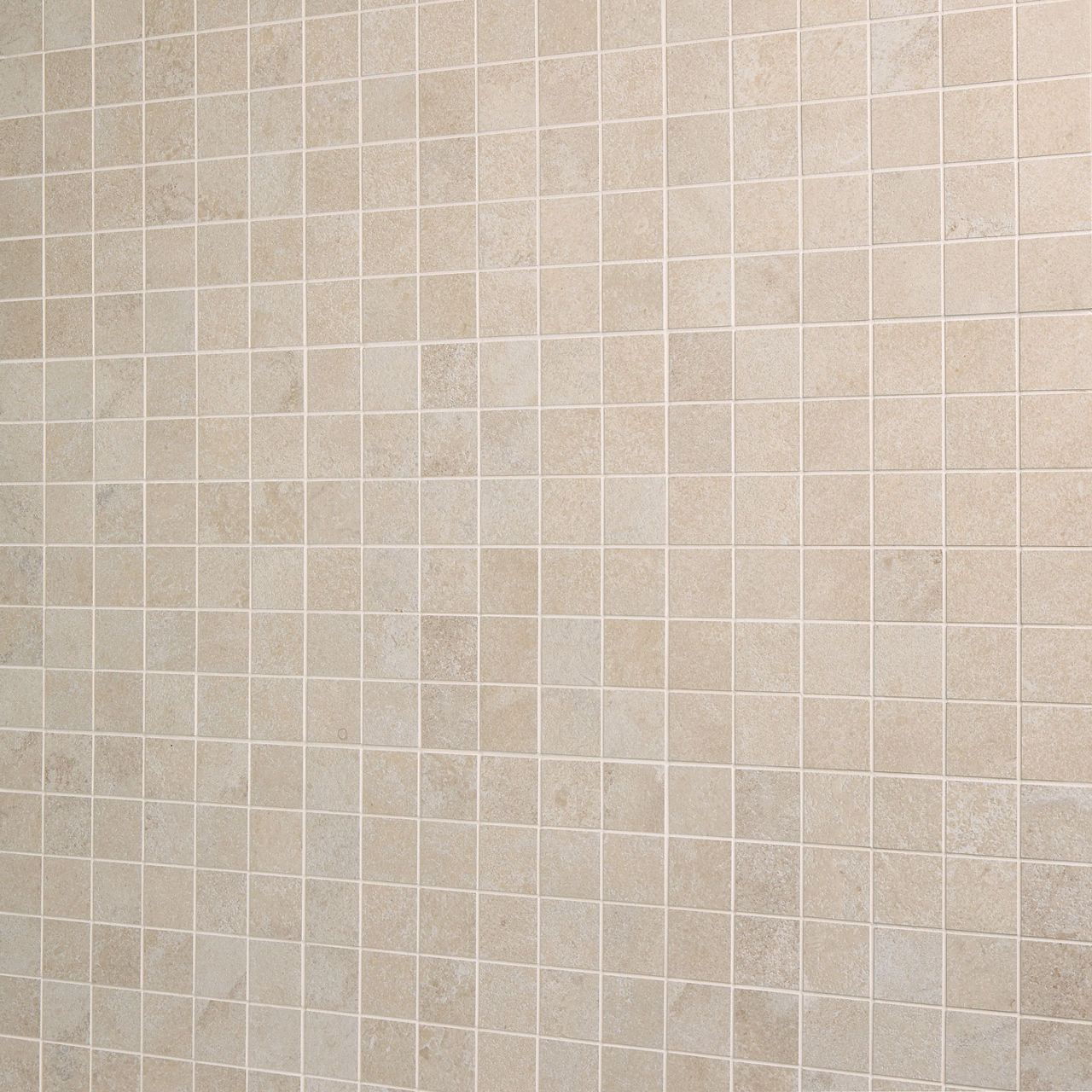

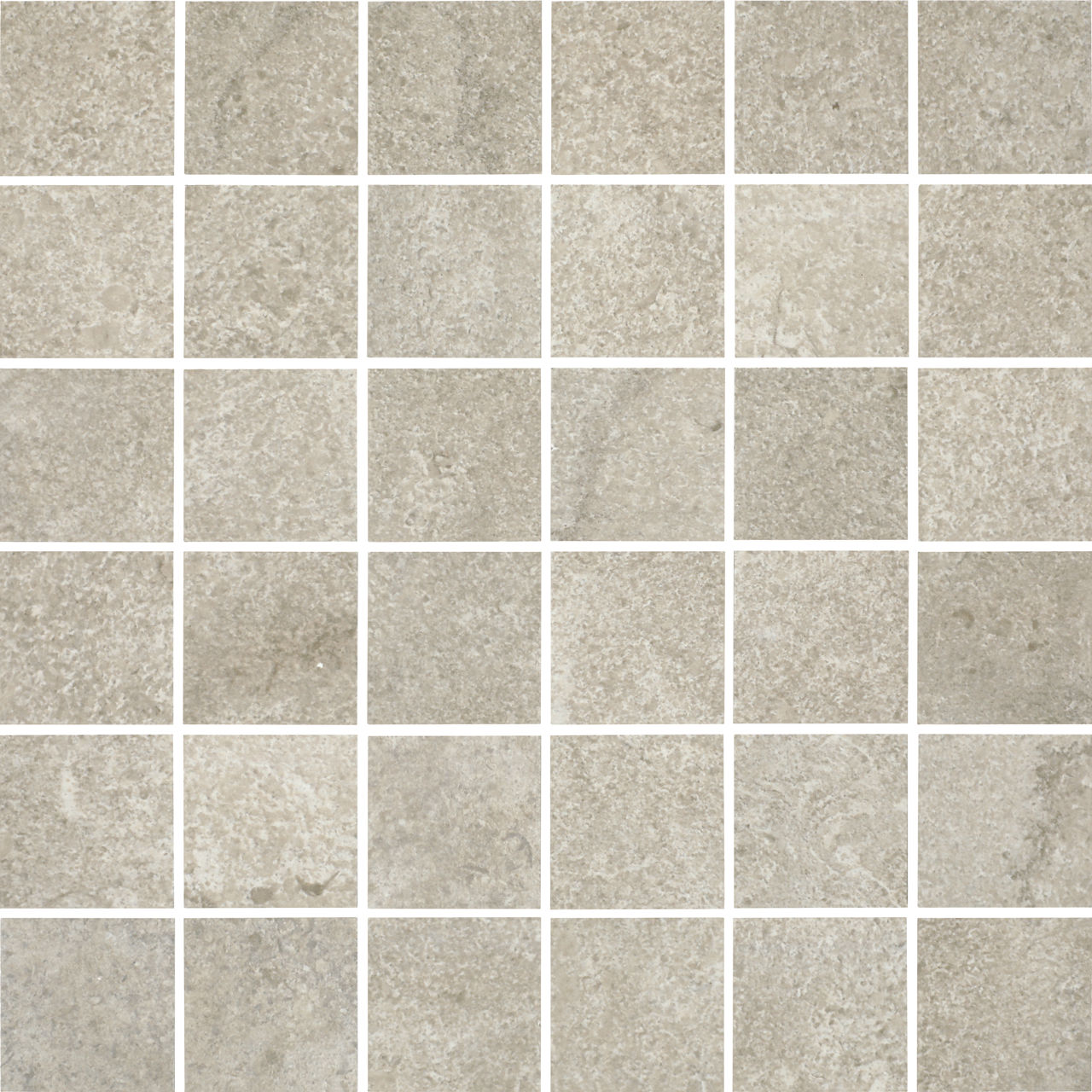

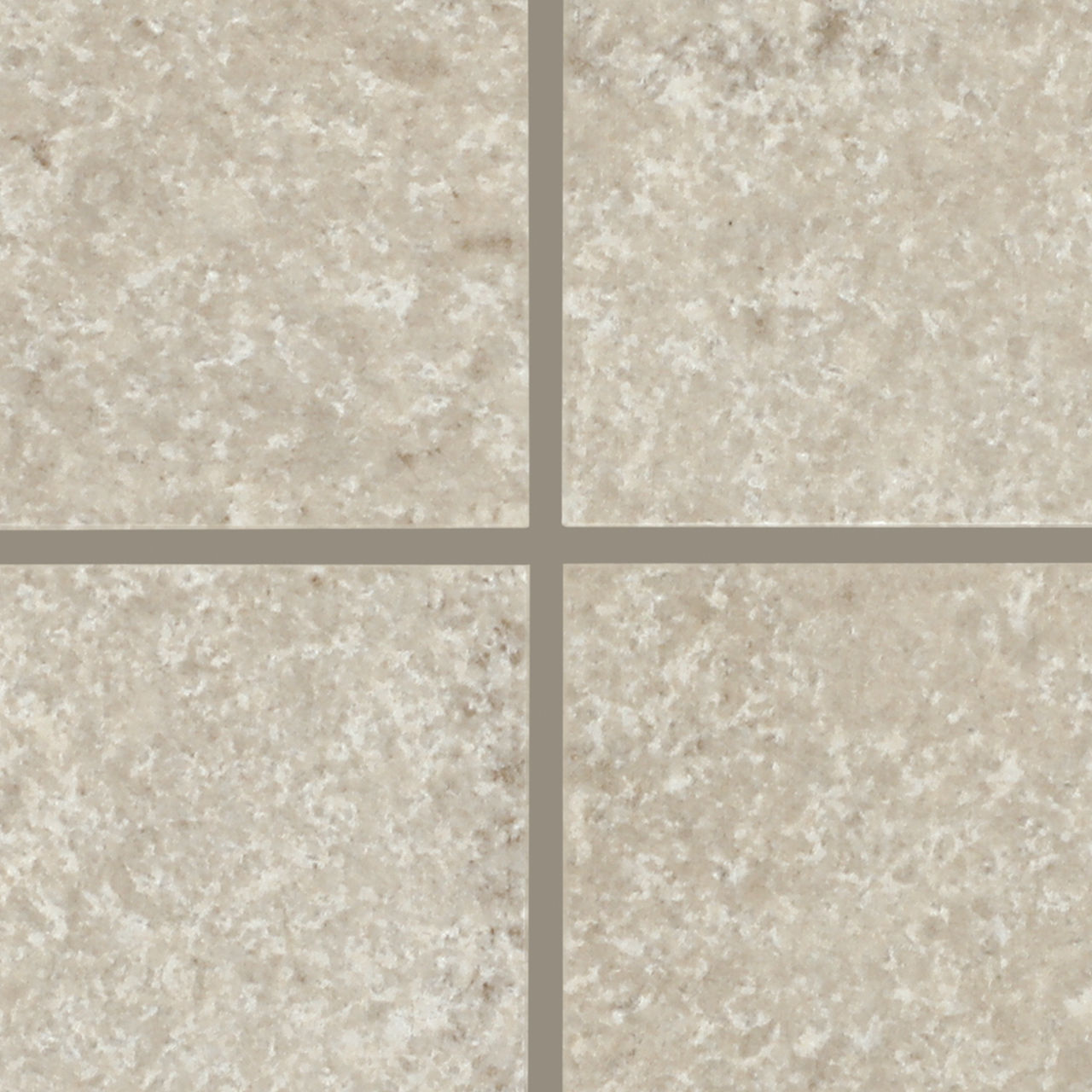

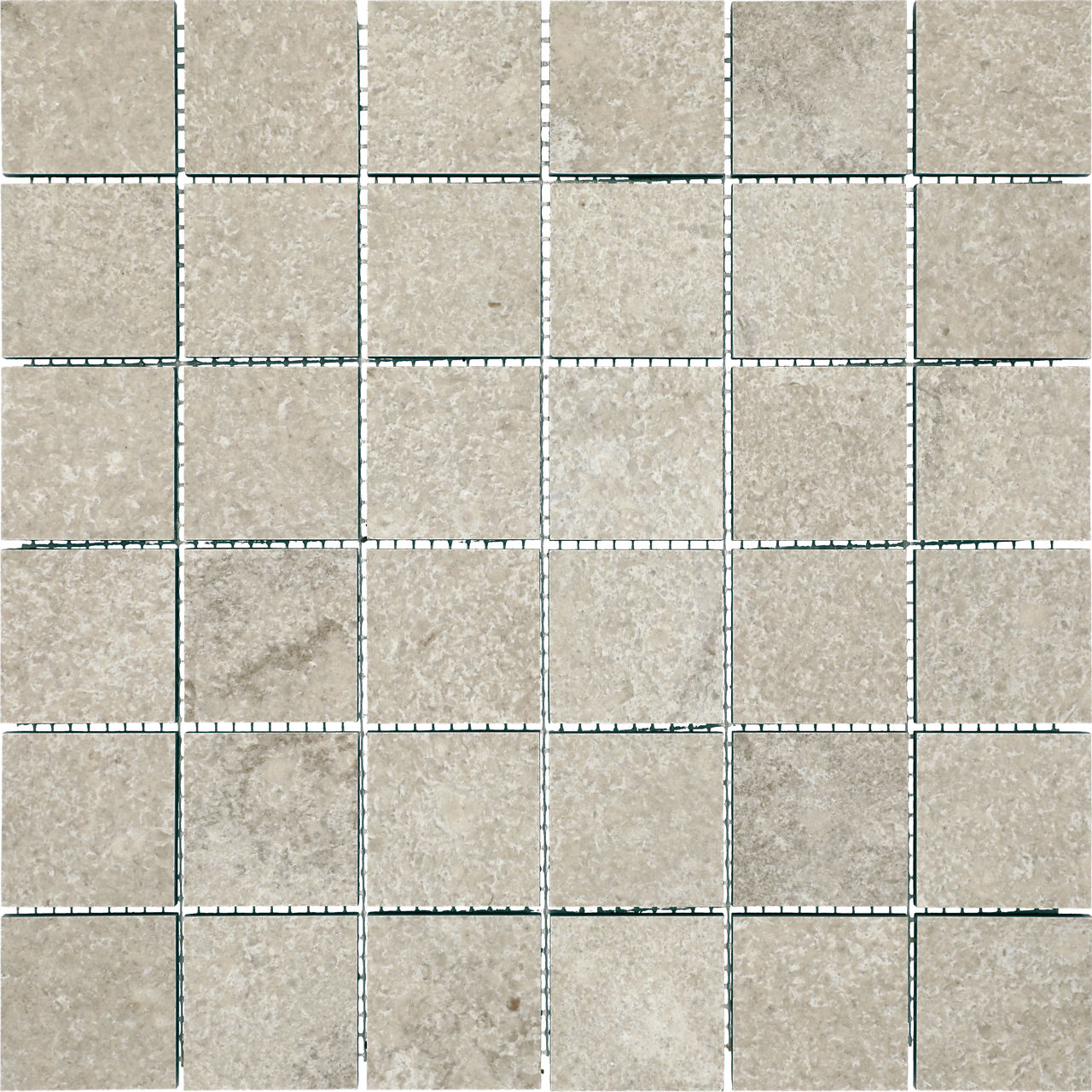

Dawn Straight Joint Crosscut

Color Code: HS05

Thickness: 5/16

Size: 2X2

Finish: Matte

Shade Variation: V3: High

Country of Origin: Mexico

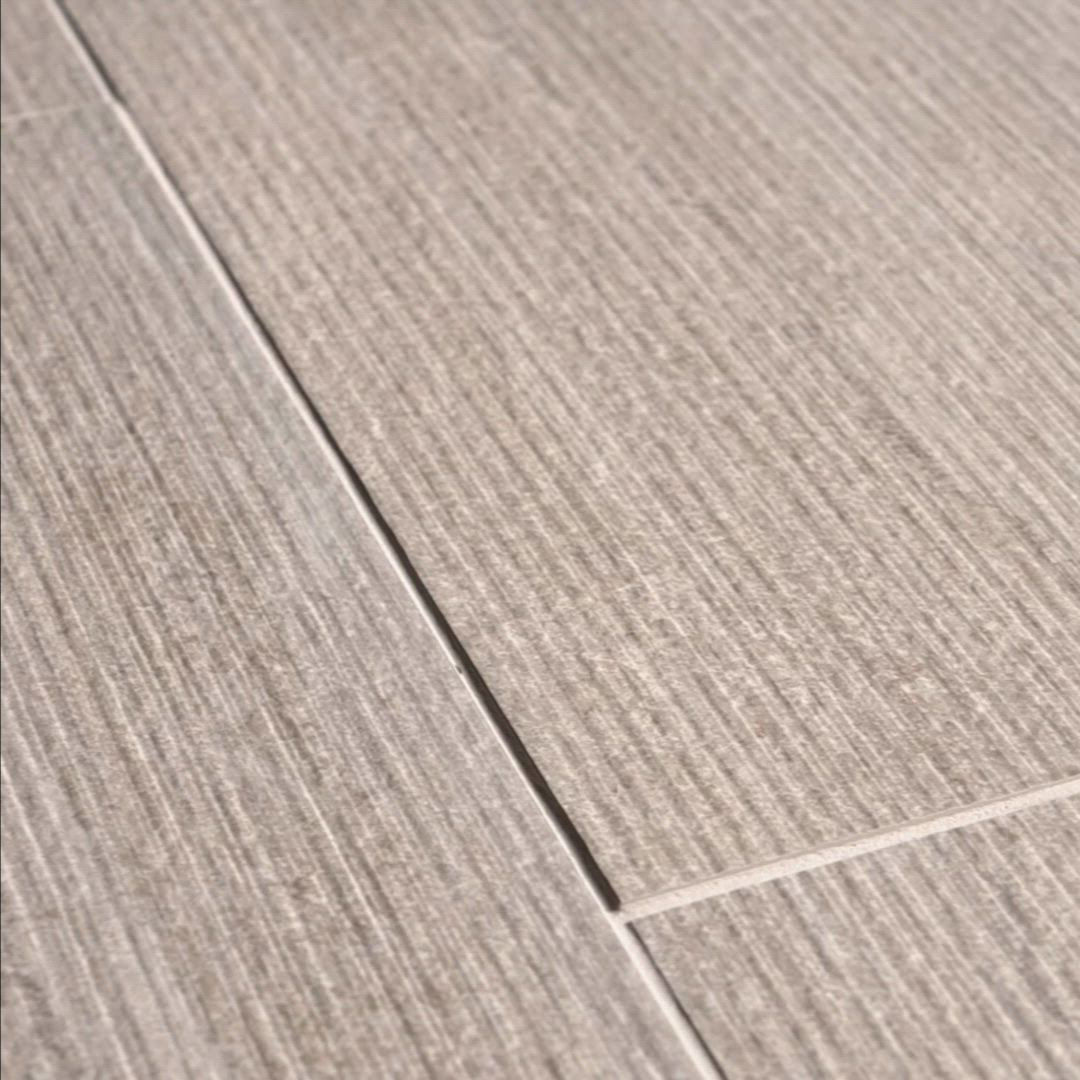

Haddonstone Textured Dawn

Video Player is loading.

Current Time 0:01

Duration 0:26

Loaded: 100.00%

Stream Type LIVE

Remaining Time 0:25

Haddonstone Crosscut Dawn

Video Player is loading.

Current Time 0:01

Duration 0:17

Loaded: 100.00%

Stream Type LIVE

Remaining Time 0:16

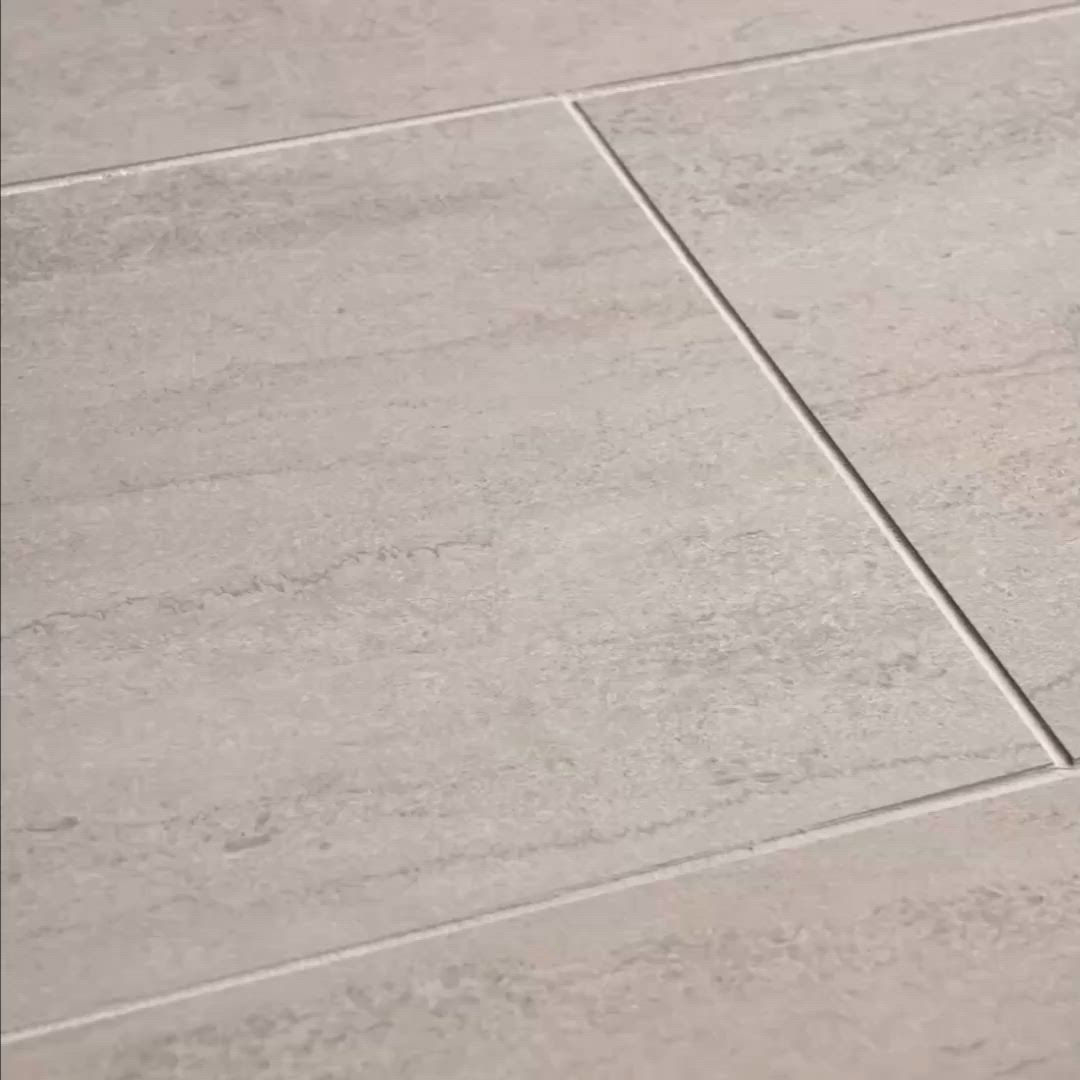

Haddonstone Vein-Cut Dawn

Video Player is loading.

Current Time 0:01

Duration 0:15

Loaded: 100.00%

Stream Type LIVE

Remaining Time 0:14

Haddonstone Crosscut Mosaic Dawn

Video Player is loading.

Current Time 0:01

Duration 0:05

Loaded: 100.00%

Stream Type LIVE

Remaining Time 0:04

Application

	Target Dcof Wet	Suitable
Dry & Level - Interior Floor	N/A	✔
Wet & Level - Interior Floor	≥0.42	✔
Shower Floors (Residential or Light Commercial)	≥0.42	✔
Exterior Floor Applications (including pool decking & other wet areas with minimal footwear)	≥0.60	✔
Ramps & Inclines	≥0.65
Walls/Backsplashes	N/A	✔
Countertops	N/A	✔
Pool Linings	N/A	✔
Grout Joint Recommendation: 1/8"
● Manufacturer Advisory: All tile is measured by the DCOF AcuTestTM method. Tiles with DCOF values less than 0.42 are not recommended for use in areas with wet or slippery conditions. For more information, see ANSI standard A137.1 section 6.2.2.1.10, available at www.tileusa.com. ● A DCOF value of greater than or equal to 0.42 is the standard for tiles specified for level interior spaces expected to be walked upon when wet, as stated in ANSI A137.1-A326.3. For more information about DCOF and the DCOF AcuTest™, visit daltile.com/DCOF.
Application Notes: ● Suitable for exterior applications in freezing and non-freezing climates, when proper installation methods are followed. ● Textured finish only. Due to limitations of the test, measured DCOF value is not an appropriate indicator of performance for all product types. For such products, different criteria are used to determine use classification per the requirements of Section 3.4 of ANSI A326.3-2021. For more information, visit daltile.com/DCOF

Technical Specifications

	Test Method	Mosaic Tile	Floor Tile
Water Absorption	ASTM C373	< 0.5	< 0.5
Breaking Strength	ASTM C648	> 275 lbs	> 275 lbs
Scratch Hardness	ASTM MOHS	4.0-8.0	8
Chemical Resistance	ASTM C650	Resistant	Resistant
